Installing Leakage Diagnosis Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Position leakage diagnosis pump.
Fit and tighten three Torx screws -1- used to secure the leakage diagnosis pump -3- .

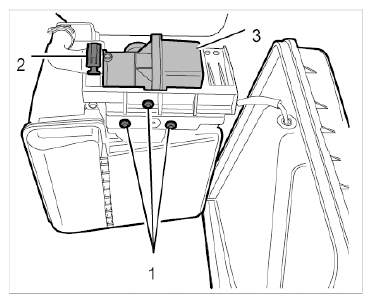

Fig 1: Identifying Spring Band Clamp, Leakage Diagnosis Pump And Torx Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Fit hose and secure with a spring band clamp -2- .
Fit air filter and tighten Torx screw -1- .

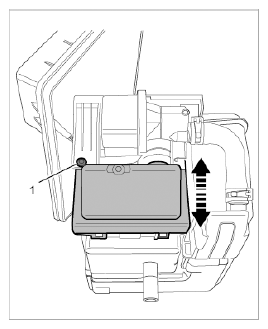

Fig 2: Fitting Air Filter For Leakage Diagnosis Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in cable plug for leakage diagnosis pump and position carbon canister lid.
Insert active carbon unit into the canister and lock the lid.
Clip in sheetmetal clips -1- used to lock the carbon canister.

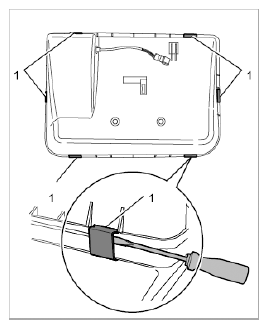

Fig 3: Identifying Sheetmetal Clips On Carbon Canister
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
