Removing carbon canister - USA variant

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove carbon canister.

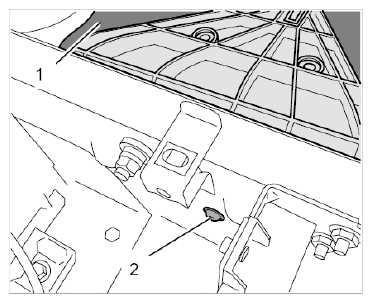

1. 1.1. Unscrew internal Torx tapping screw -2- on the carbon canister -1- .

  Fig 1: Identifying Fastening Screw For Carbon Canister (USA)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

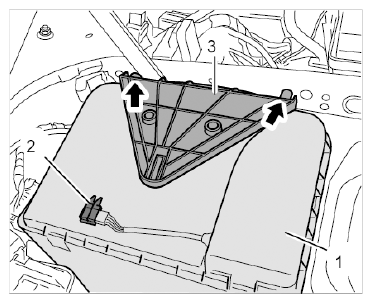

2. 1.2. Unclip and unplug the cable plug -2- on the carbon canister.

  Fig 2: Removing Carbon Canister (USA)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Prise the holder -3- out of the guide using an assembly wedge -arrows- .
Removing carbon canister

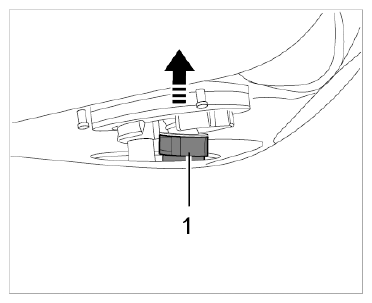

1. 2.1. Lift the canister up as far as possible -arrow- , release the large plug-in coupling -1- and pull it off.

  Fig 3: Pulling Off Large Plug Coupling
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

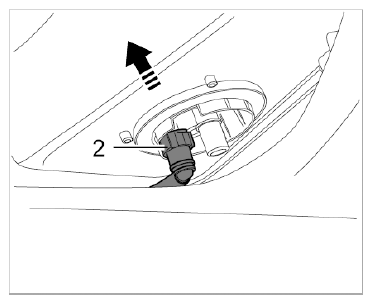

2. 2.2. Then release and pull off the small plug-in coupling -2- .

  Fig 4: Pulling Off Small Plug Coupling
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
