Installing Carbon Canister - USA Variant

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert carbon canister and connect plug-in couplings.
The plug-in couplings must lock with an audible click.

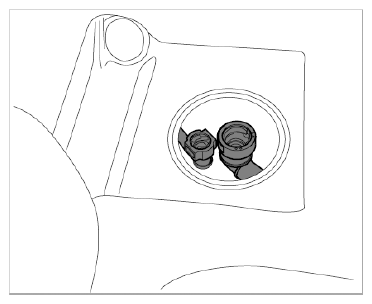

Fig 1: Inserting Carbon Canister And Plug Couplings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install carbon canister.
1. 2.1. Insert plastic holder -2- into the latch and lever it into the guide using an assembly wedge -arrows- .

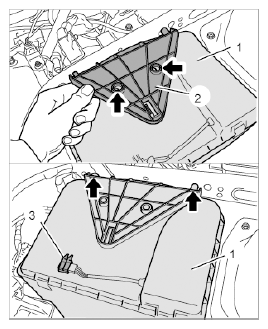

  Fig 2: Inserting Plastic Holder Into Latch And Lever
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 2.1.1. Connect the cable plug -3- .
  2. 2.1.2. Fit and tighten internal Torx tapping screw -2- on the carbon canister -1- .

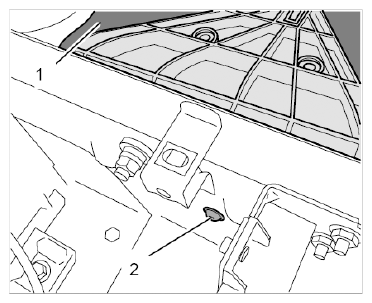

    Fig 3: Identifying Fastening Screw For Carbon Canister (USA)
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
