Installing Carbon Canister - RoW Variant

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install carbon canister.
1. 1.1. Moisten the rubber sleeves with water and press the canister into the bores on the body -1- .

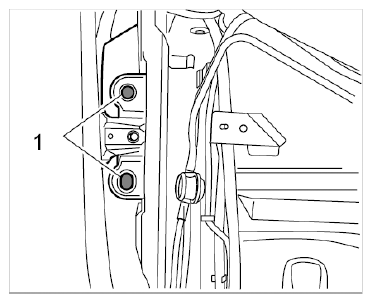

  Fig 1: Identifying RoW Carbon Canister Mounting Point On Body
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Connect plug-in couplings -2- on the carbon canister and clip in lines at the clip holder -3- .

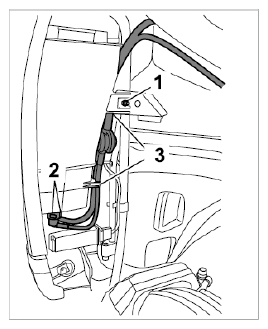

  Fig 2: Identifying Carbon Canister (RoW)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Fit and tighten M6 collar nut -1- on the holder.
  → Tightening torque: 10 Nm (7.5 ftlb.) .
