Removing Carbon Canister - USA Variant

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove the carbon canister.
1. 1.1. C2/USA variant

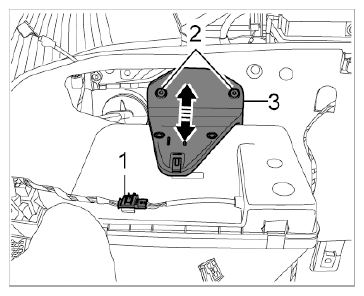

  Fig 1: Removing Carbon Canister (Carrera 2 - USA)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1.1.1. Disconnect cable plug on canister -1- .
  2. 1.1.2. Unscrew two internal Torx screws M6x25 -2- from plastic holder for the carbon canister and press holder -3- from guide in direction of travel.
2. 1.2. C4/USA variant

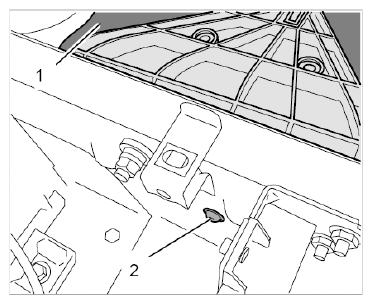

  Fig 2: Identifying Carbon Canister (Carrera 4 - USA)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1.2.1. Unscrew internal Torx tapping screw -2- from the carbon canister -1- .
  2. 1.2.2. Unclip and disconnect the cable plug -2- on the carbon canister.

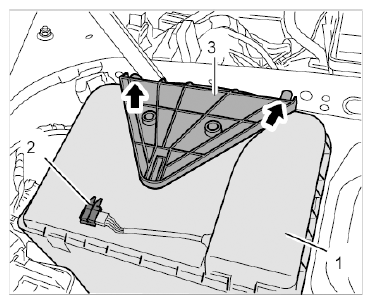

    Fig 3: Removing Carbon Canister (Carrera 4 - USA)
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. 1.2.3. Prise the holder -arrows- out of the guide using an assembly wedge.
Disconnect carbon canister.

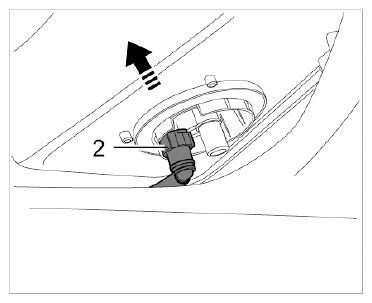

Fig 4: Removing Small Plug Coupling
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Lift carbon canister, release the small plug-in coupling -2- and pull it off.

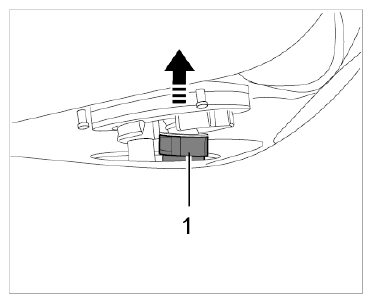

2. 2.2. Release large plug-in coupling -1- and pull it off.

  Fig 5: Removing Large Plug Coupling
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
