Removing Carbon Canister - RoW Variant

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove carbon canister.

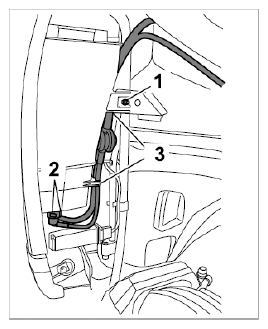

    Fig 1: Identifying RoW Carbon Canister
    G09828182Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Unscrew M6 collar nut -1-  .
    2. 1.2. Carefully pull the carbon canister out of the mounting points on the body in direction of travel.
    3. 1.3. Release and pull off plug-in couplings on the underside of the canister -2-  .
    4. 1.4. Unclip lines from the attachment points on the canister -3-  .
