Installing Carbon Canister - USA Variant

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert carbon canister and connect plug-in couplings.
The plug-in couplings must lock with an audible click.

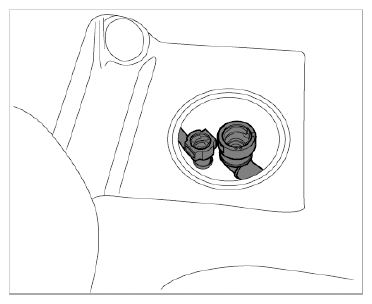

Fig 1: Inserting Carbon Canister And Plug Couplings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the carbon canister.
1. 2.1. C2/USA variant

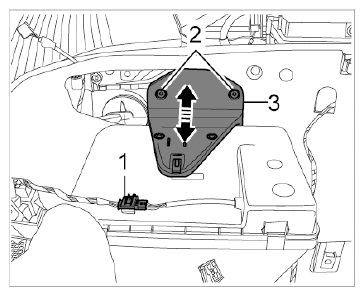

  Fig 2: Fitting Carbon Canister (Carrera 2 - USA)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 2.1.1. Slide the plastic holder on the carbon canister -3- into the guide and fix it in place at the plenum panel.
    Screw in and tighten two M6 internal Torx screws -2- .

    → Tightening torque: 10 Nm (7.5 ftlb.)
  2. 2.1.2. Unclip cable plug on the carbon canister -1- and then disconnect it.
2. 2.2. C4/USA variant

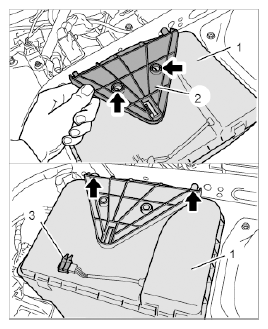

  Fig 3: Disconnecting Carbon Canister (Carrera 4 - USA)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 2.2.1. Insert plastic holder -2- into the latch and lever it into the guide using an assembly wedge.
  2. 2.2.2. Connect cable plug -3- .
  3. 2.2.3. Screw in and tighten internal Torx tapping screw -2- on the carbon canister -1- .

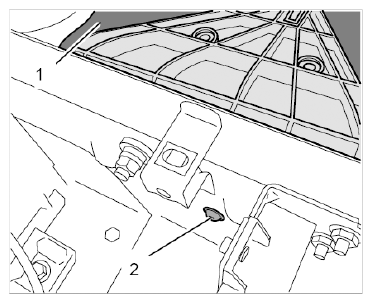

    Fig 4: Identifying Carbon Canister (Carrera 4 - USA)
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
