Removing Carbon Canister - USA Version

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip cable plug from canister -1-  and then disconnect.

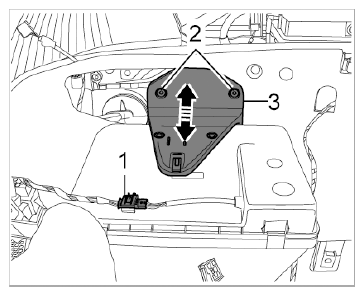

    Fig 1: Removing Carbon Canister For USA
    G09828200Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew two Torx screws M6 -2-  from plastic holder for the carbon canister and press holder -3-  from guide in direction of travel.
  3. Lift carbon canister, release the small plug-in coupling -2-  and pull it down and off.

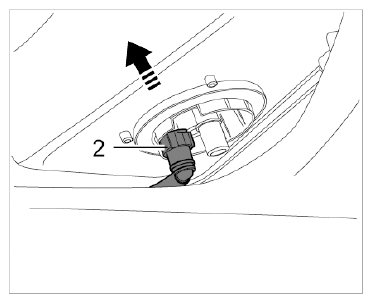

    Fig 2: Removing Small Plug Coupling
    G09828201Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Lift carbon canister, release the large plug-in coupling -1-  and pull it down and off.

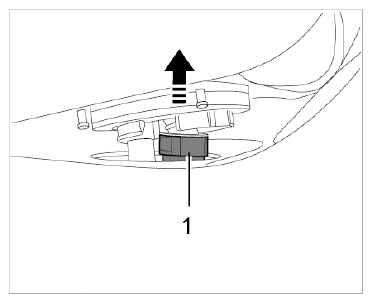

    Fig 3: Removing Large Plug Coupling
    G09828202Courtesy of PORSCHE CARS NORTH AMERICA, INC.
