Installing Carbon Canister - USA Version

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Plug-in couplings in the vehicle

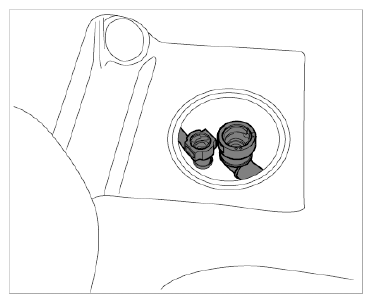

Fig 1: View Of Plug Couplings

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert canister and connect the plug-in couplings which must engage audibly.
Slide plastic holder for the canister -3- into the guide and fix to the plenum panel. Screw in two Torx screws M6 -2- and tighten. → Tightening torque: 7.5 ftlb.

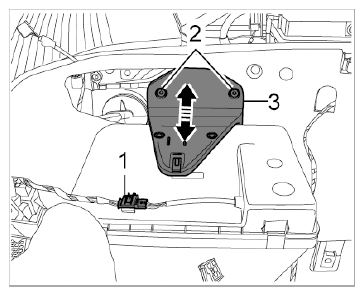

Fig 2: Sliding Plastic Holder For Canister
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable plug and clip into the cable guide on the canister -1- .
