Installing Carbon Canister - RoW Version

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Wet rubber sleeves with water. Press canister into the body bores -1- .

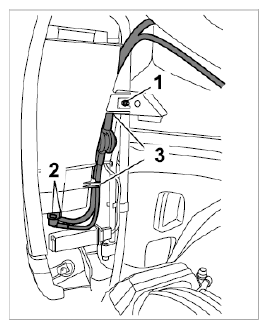

Fig 1: Identifying Canister Into Body Bores
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug-in couplings to the underside of the canister and clip in the lines. Screw in collar nut M6 on the holder and tighten. → Tightening torque: 7.5 ftlb.

Fig 2: Identifying Carbon Canister For Row
