Removing Tank Vent Valve

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Release plug-in coupling -1- on the (center) intake-air distributor and pull it off by pressing the locking lugs.

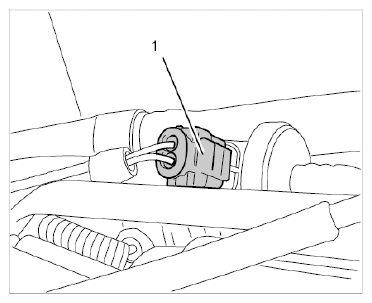

Fig 1: Identifying Plug Coupling On Intake-Air Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release plug-in coupling -2- on the supply line from the carbon canister and pull it off by pressing the locking lugs

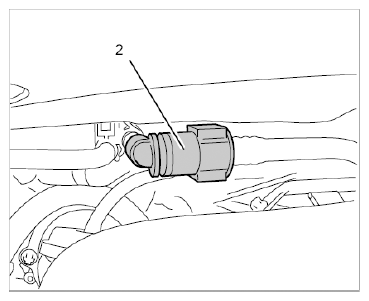

Fig 2: Identifying Plug Coupling On Line From Carbon Canister
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect the cable plug -1- and unclip and remove the tank vent valve and lines.

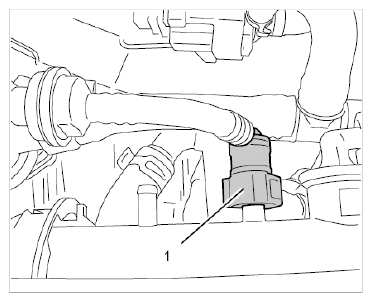

Fig 3: Identifying Cable Plug For Tank Vent Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
