Installing Tank Vent Valve

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Clip in tank vent valve with lines and plug in and engage cable plug -1- .

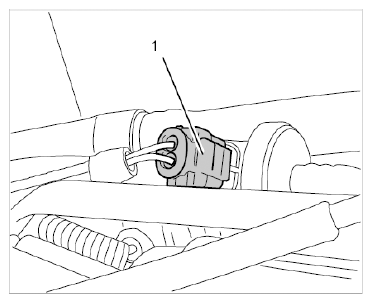

Fig 1: Identifying Cable Plug For Tank Vent Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug-in coupling -2- of the supply line from the carbon canister.
The plug-in coupling must lock with an audible click.

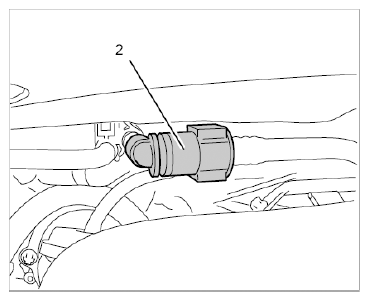

Fig 2: Identifying Plug Coupling On Line From Carbon Canister
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug-in coupling -1- to the (center) intake-air distributor.
The plug-in coupling must lock with an audible click.

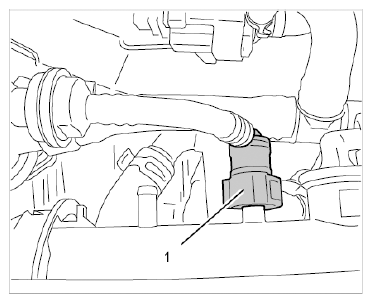

Fig 3: Identifying Plug Coupling On Intake-Air Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
