Removing Tank Vent

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Release connecting line -1- at the resonance tube and pull it off by pressing the locking lugs.

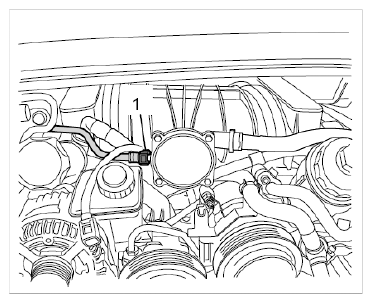

Fig 1: Connecting Line At Resonance Tube
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release plug-in coupling -1- on the supply line from the carbon canister and pull it off the tank vent line.

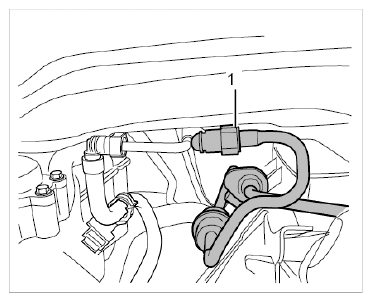

Fig 2: Identifying Plug Coupling For Plug Connection From Carbon Canister
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect the plug connection -2- and remove tank vent -1- and lines.

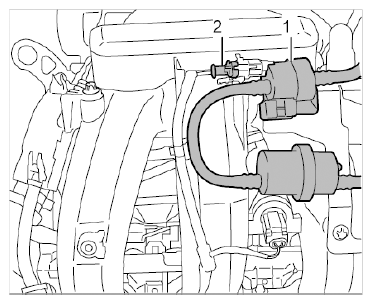

Fig 3: Identifying Cable Plug For Tank Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull rubber sleeve on the -1- tank vent out of the holder.

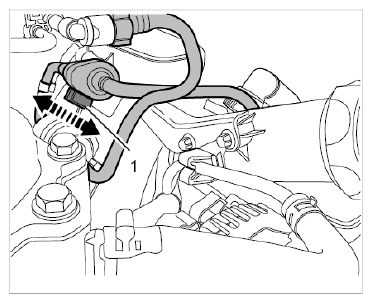

Fig 4: Removing Connection On Tank Vent Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
