Installing Tank Vent

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Slide rubber sleeve -1- on the tank vent into the holder.

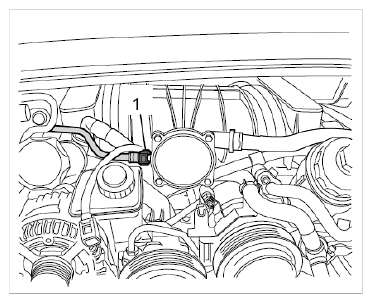

Fig 1: Installing Connection On Tank Vent Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect tank vent -1- and lines on the holder and plug in cable plug -2- .

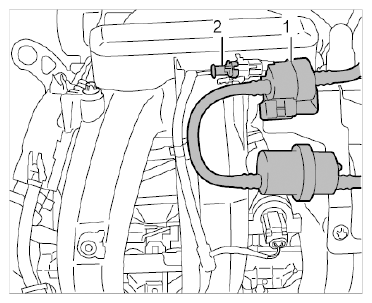

Fig 2: Identifying Cable Plug For Tank Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug-in coupling -1- of the supply line from the carbon canister.

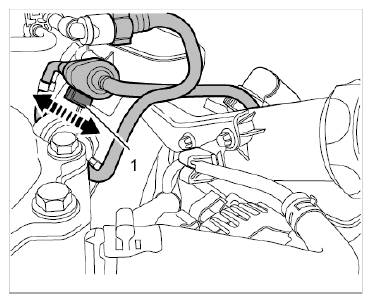

Fig 3: Identifying Plug Coupling For Plug Connection From Carbon Canister
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach connecting line -1- at the resonance tube.
The plug-in coupling must lock with an audible click.

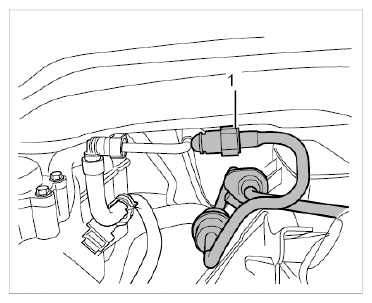

Fig 4: Connecting Line At Resonance Tube
