Removing Fuel Level Sensor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Information

Watch out for emerging fuel when disconnecting fuel lines. Place a clean cloth on the connection point, then loosen the connection.

Connect plug connections on the fuel level sensor.
1. 1.1. USA variant:

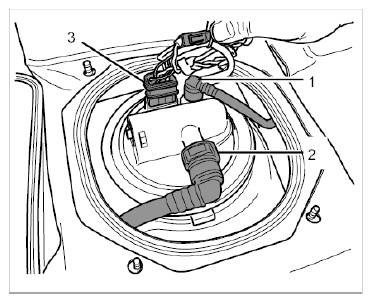

  Fig 1: Identifying Fuel Level Sensor (USA)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1.1.1. Release and pull off plug-in couplings for fuel lines -1- and vent line -2- .
  2. 1.1.2. Release and pull off multiple plug connection -3- .
2. 1.2. RoW variant:

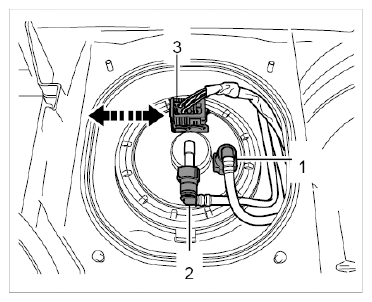

  Fig 2: Pulling Off Fuel Level Sensor (RoW)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1.2.1. Release and pull off plug-in couplings for fuel lines -1- and vent line -2- .
  2. 1.2.2. Release and pull off multiple plug connection -3- .
Screw metal catch off the fuel level sensor using special tool Lug Wrench P 9731 .

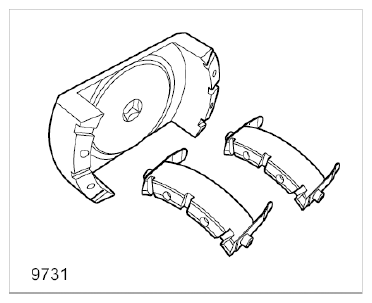

Fig 3: Identifying Special Tool (Lug Wrench P 9731)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fuel level sensor.
1. 3.1. Carefully pull fuel level sensor out of the fuel tank.
2. 3.2. Release and pull off plug-in coupling for the fuel line -1- on the fuel level sensor.
  Press locking lugs and pull off the plug-in coupling.

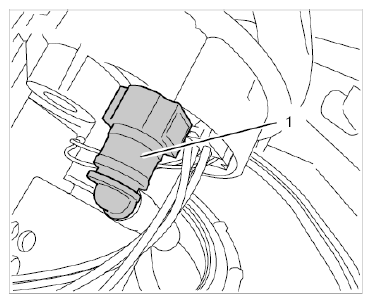

  Fig 4: Identifying Fuel Line On Fuel Level Sensor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Release and unplug electric plug connection on the fuel level sensor -1- .

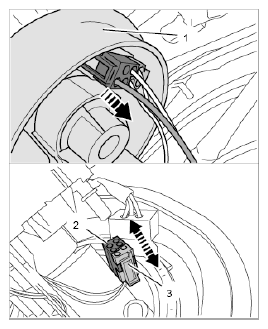

  Fig 5: Disconnecting Connector For Fuel Level Sensor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 3.3.1. Disconnect the two housing halves (yellow/blue) -2, 3- of the multiple plug connection.
4. 3.4. Carefully remove the fuel level sensor.
Information
- When the work is complete, check that all aids and foreign objects (e.g. cloths, tools) are removed from the engine compartment.
Make sure there are no tools, foreign objects or aids left in the work area.
