Preliminary Work - Carrera 4

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place protective covers on the vehicle.
  2. Disconnect the battery.

    → 2706IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .

  3. Remove luggage compartment cover.

    → 700519 REMOVING AND INSTALLING TRIM PANEL FOR FRONT LUGGAGE COMPARTMENT - section on "Removing".

  4. Remove cover for tank flange.

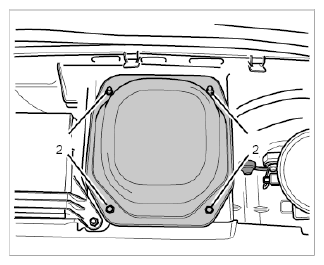

    Fig 1: Identifying Cover For Tank Flange
    G09828122Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 4.1. Unscrew four M6 fastening nuts -2-  , remove the four washers and lift off the lid.
    2. 4.2. Check seal for signs of damage.
