Preliminary work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of fire from escaping fuel.

Danger of fatal injury and damage to property.

→ Observe basic safety instructions when working on the fuel system, → 2001AW BASIC SAFETY INSTRUCTIONS WHEN WORKING ON THE FUEL SYSTEM .

→ Secure working area.

Attach a clearly visible warning sign to the area of the vehicle on which you are working.

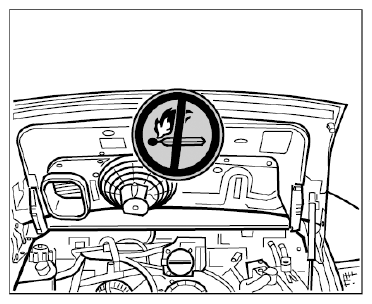

Fig 1: Example Of Warning Sign
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place protective covers on the vehicle.
Carrera 2:
- Disconnect and remove battery → 270619 REMOVING AND INSTALLING BATTERY - section on "Removing".

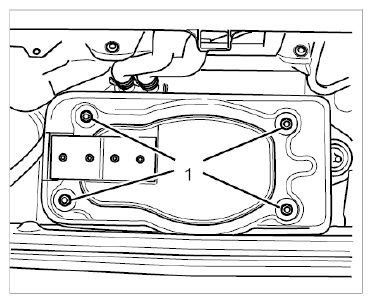

- Remove carrier plate for battery. Unscrew four M8 hexagon collar nuts -1- and remove lid. Check seal for damage and replace it if necessary.

  Fig 2: Identifying Carrier Plate For Battery
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carrera 4:
- Disconnect the battery → 2706IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
- Remove luggage compartment cover → 700519 REMOVING AND INSTALLING TRIM PANEL FOR FRONT LUGGAGE COMPARTMENT - section on "Removing".

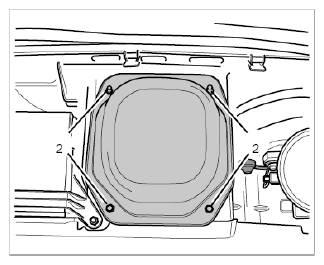

- Remove cover for tank flange. Unscrew four M6 cap nuts -2- , remove the four washers and lift off the lid. Check seal for signs of damage.

  Fig 3: Identifying Cover For Tank Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information

Watch out for emerging fuel when disconnecting fuel lines. Place a clean cloth on the connection point, then loosen the connection.
Remove fuel level sensor → 201519 REMOVING AND INSTALLING FUEL LEVEL SENSOR - section on "Removing".
