Filling The Fuel Tank

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of fire from escaping fuel.

Danger of fatal injury and damage to property.

→ Observe basic safety instructions when working on the fuel system, → 2001AW BASIC SAFETY INSTRUCTIONS WHEN WORKING ON THE FUEL SYSTEM .

→ Secure working area.

Install fuel level sensor → 201519 REMOVING AND INSTALLING FUEL LEVEL SENSOR - section on "Installing".

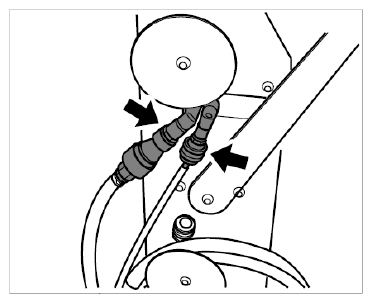

Attach fuel nozzle hose package to the side connections on the device.
Information

When using the fuel transfer unit, always make sure that the grounding cable is connected to a ground point on the vehicle.
Secure grounding terminal of device to an (unpainted) ground point on the vehicle.

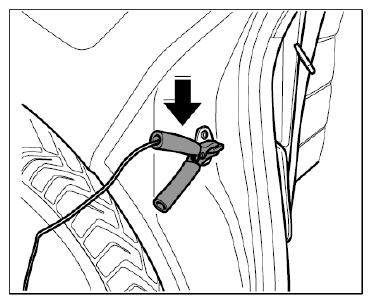

Fig 1: Locating Grounding Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert fuel nozzle at tank filler neck.

Fig 2: Inserting Fuel Nozzle At Tank Filler Neck
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Set operating lever for pump to "Refill" mode -2- and switch on the device.

Fig 3: Setting Operating Lever For Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill the vehicle using the fuel nozzle, then switch off and remove the device.
Alternatively, the vehicle can be filled using a canister and a suitable funnel.
