Emptying The Fuel Tank: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Risk of fire from escaping fuel.
  • Danger of fatal injury and damage to property.

→ Observe basic safety instruction when working on the fuel system, → 2001AW BASIC SAFETY INSTRUCTIONS WHEN WORKING ON THE FUEL SYSTEM .

→ Secure working area.

Information

Refer to the operating instructions for information on using the fuel transfer unit.

Using the fuel transfer unit WE 1262

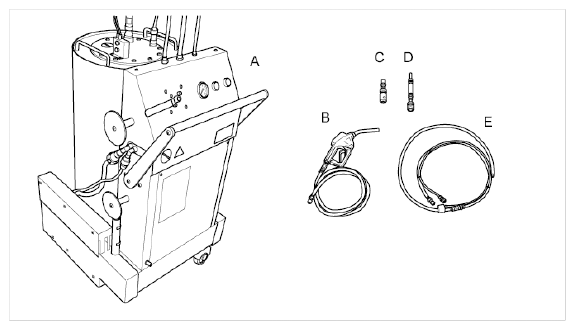

Fig 1: Identifying Fuel Transfer Unit (WE 1262)
G09828037Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Item Designation Source Explanation
A Fuel transfer unit WE WE1262  Workshop Equipment Manual, Chapter 3.2.2 This unit has been tested and approved by PORSCHE.
B Fuel nozzle (special accessory) Workshop Equipment Manual, Chapter 3.2.2 For refuelling vehicles. The fuel nozzle switches off automatically as soon as the fuel tank is full.
C Porsche adapter Workshop Equipment Manual, Chapter 3.2.2 This adapter fits 8-mm to 10- mm fuel lines; Order No. 400 110
E Connecting piece between Porsche adapter and suction line Workshop Equipment Manual, Chapter 3.2.2 This is screwed onto the suction line -E-  and connected to the Porsche adapter.
E Suction line with venting device Workshop Equipment Manual, Chapter 3.2.2 Attach venting device (rubber taper with transparent hose) to the fuel filler neck. Minimizes emerging fuel vapors.
