Removing Fuel Tank

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Unclip the two clips on the body -arrows- .

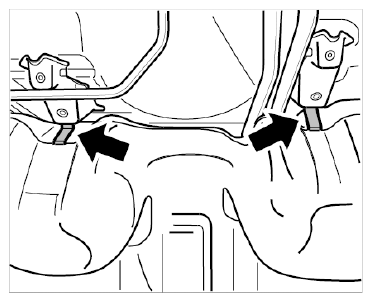

Fig 1: Identifying Fuel Tank Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Get another person to help you remove and install the fuel tank.
Remove the fuel tank.

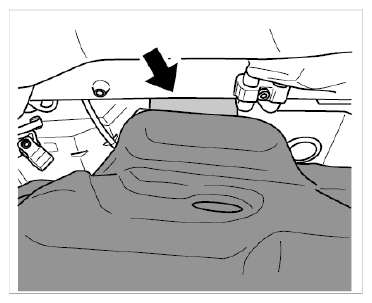

Fig 2: Locating Fuel Tank
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. To do this, first tilt the tank towards the rear and carefully guide the tank flange over the edge of the body -arrow- .
