Component Information: Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

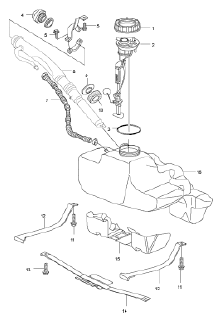

Fig 1: Overview Of Fuel Tank Component
G09828053Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Union nut
  2. Fuel level sensor
  3. Sealing ring
  4. Cover
  5. Hexagon-head bolt, M6 x 20
  6. Internal Torx screw, M6 x 20
  7. Not fitted
  8. Filler neck
  9. Washer
  10. Seal
  11. Combination screw, M8 x 40
  12. Restraining straps
  13. Combination screw, M8 x 40
  14. Restraining strap, transverse
  15. Fuel tank cover (protective plate) with sealing ring
  16. Fuel tank
