Removing Fuel Tank - Carrera 4

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Overview of the Carrera 4

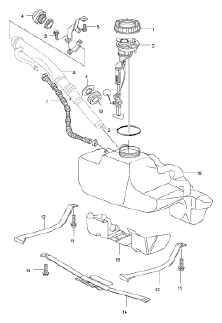

Fig 1: Overview Of Fuel Tank Component (Carrera 4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Union nut
Fuel level sensor
Sealing ring
Lid
Hexagon-head bolt, M6 x 20
Internal Torx screw, M6 x 20
Breather hose
Filler neck
Washer
Seal
Combination screw, M8 x 40
Restraining straps
Combination screw, M8 x 40
Restraining strap, transverse
Fuel tank cover (protective plate) with sealing ring
Fuel tank

Remove transverse restraining strap.
Unscrew two M8 x 40 screws securing the transverse restraining strap to the body at the left and right.

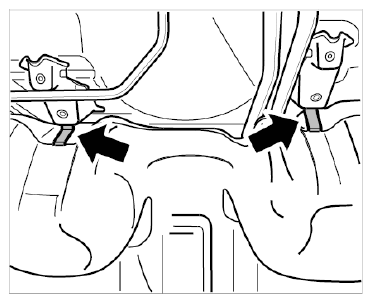

Unclip the two clips on the body -arrows- .

Fig 2: Identifying Fuel Tank Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Get another person to help you remove and install the fuel tank.
Remove the fuel tank.

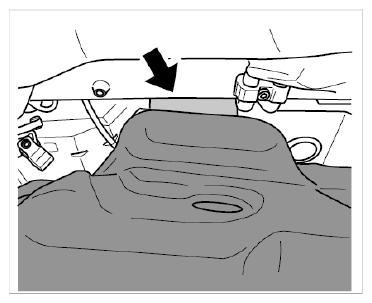

To do this, first tip the fuel tank back and carefully guide the tank flange past the edge of the body -arrow- .

Fig 3: Locating Fuel Tank
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check foam parts for damage and replace them if necessary.
