Removing Fuel Tank - Carrera 2
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

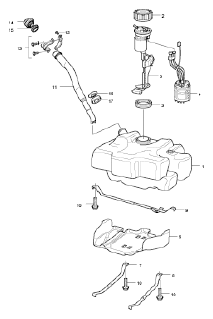

Overview of the Carrera 2
- Fuel tank
- Union nut
- Sealing ring
- Electric fuel pump
- Fuel level sensor
- Fuel tank cover (protective plate)
- Restraining strap, right
- Restraining strap, left
- Restraining strap, transverse
- Combination screw, M8 x 40
- Filler neck
- Internal Torx screw, M6 x 20
- Holding clamp for filler neck
- Lid
- Sealing ring
- Washer
- Seal
- Remove transverse restraining strap.

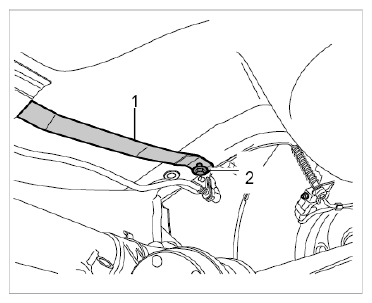

Unscrew two M8 screws -2- securing the transverse restraining strap -1- to the body at the left and right.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING: Highly inflammable or explosive materials- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.
Information
Get another person to help you remove and install the fuel tank.
- Remove the fuel tank.

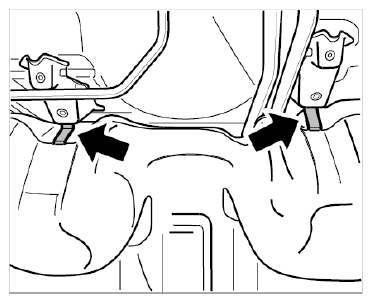

Unclip the two clips -arrows- on the body and lift the fuel tank out of the vehicle with the help of another person. To do this, first tip the fuel tank to the right. Be careful of the tank flange.
