Installing Fuel Tank - Carrera 4

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Foam parts must be fitted on the fuel tank. Affix new parts to the specified positions if necessary.

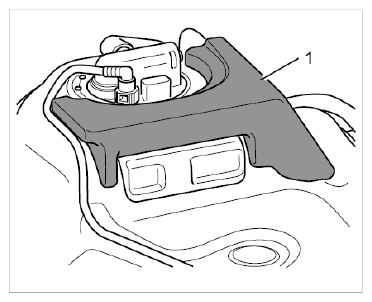

Affix foam part -1- to the tank flange of the fuel tank if necessary.

Fig 1: Identifying Foam Part On Tank Flange Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side view

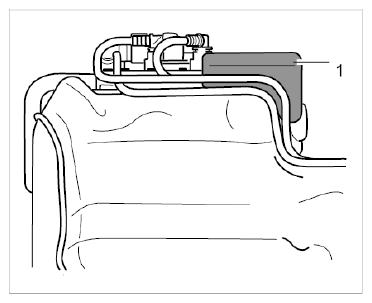

Fig 2: Identifying Foam Part On Tank Flange (Side View)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

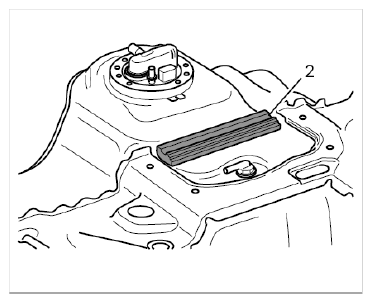

Affix foam part -2- for the bulkhead if necessary.

Fig 3: Identifying Foam Part For Bulkhead
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Get another person to help you remove and install the fuel tank.
Install the fuel tank.
1. 3.1. Clip clips into the body mounting points.
2. 3.2. Insert transverse restraining strap at the correct position on the tank and secure with two M8 screws.
  → Tightening torque: 23 Nm (17 ftlb.)
