Installing Filler Neck

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace seal at filler neck.

Coat filler neck lightly with new engine oil in the assembly area in front of the seal.
Install filler neck.

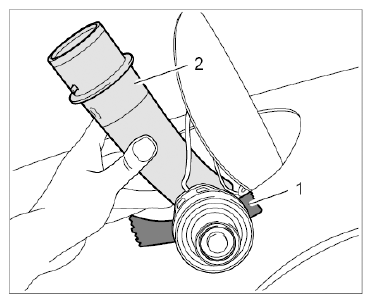

Fig 1: Installing Filler Neck
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Guide filler neck -2- with a new seal into the opening of the tank.
2. 2.2. Then turn the filler neck at the top and bottom alternately and place it in installation position.
Install the tank tray.

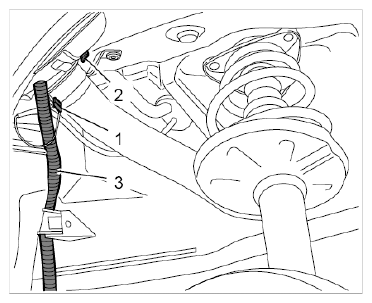

Fig 2: Identifying Tank Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Fit and clip in the tank tray.
2. 3.2. Connect the overflow hose -3- at the tank tray.
3. 3.3. Connect the ground strap -1- .
Install the holder.

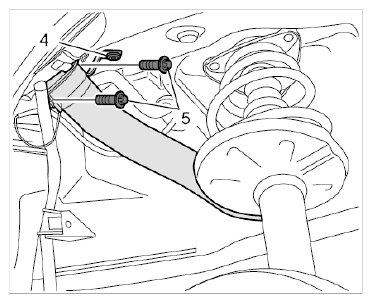

Fig 3: Identifying Screws On Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Fit and tighten internal Torx screw (T30, M6 x 20) -4- for the body (in the wheel arch).
  → Tightening torque: 10 Nm (7.5 ftlb.)
2. 4.2. Fit and tighten two M6 x 20 hexagon-head bolts -5- on the filler neck holder.
  → Tightening torque: 10 Nm (7.5 ftlb.)
Close the fuel tank cap securely. (Turn to click!)
