Tools And Materials

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

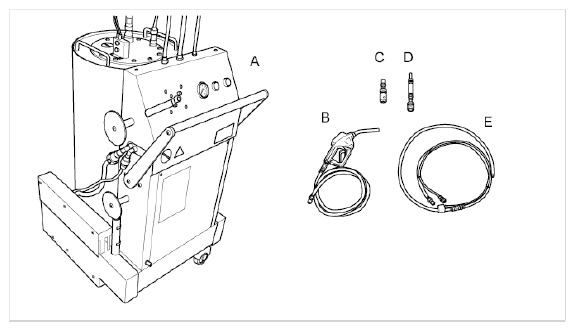

Fig 1: Identifying Fuel Transfer Unit
G09827980Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fuel Transfer Unit Tank Primus 100/100S WE 1262  (This unit has been tested and approved by PORSCHE.)
  2. Special accessory - fuel nozzle (This is used for refuelling the vehicle. The fuel nozzle switches off automatically when the fuel tank is full.)
  3. Porsche adapter (adapter fits 8-mm to 10-mm fuel lines for vehicle types 986, 987, 996, 997 and Cayenne)
  4. Connecting piece between Porsche adapter and suction line (is screwed into the suction line -E-  and connected to the Porsche adapter -C-  .)
  5. Always attach suction line with venting device (rubber taper with transparent hose) to the filler neck. This minimizes the amount of escaping fuel vapors.
