Draining Fuel - RoW Variant

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Information

Fuel can be drained using the following methods:

> At the installed fuel level sensor via the adapter.

> Directly from the tank with the fuel level sensor removed.

Drain fuel, fuel level sensor installed:

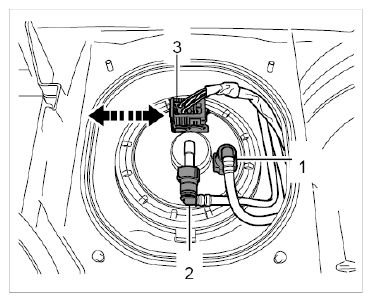

1. 1.1. Release and pull off the fuel line -1- . Soak up emerging fuel with a cloth.

  Fig 1: Releasing Fuel Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Attach Porsche adapter to the adapter. Twist top and bottom part of adapter in opposite directions -arrows- until it is tight.

  Fig 2: Fitting Adapter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

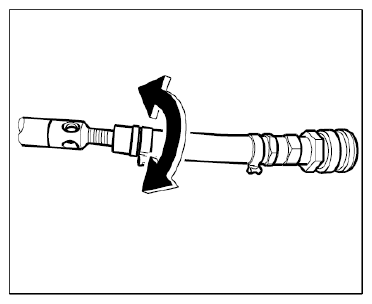

3. 1.3. Screw the connecting piece into the suction hose and tighten it hand-tight.
  → Connecting piece

  Fig 3: Identifying Connecting Piece
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

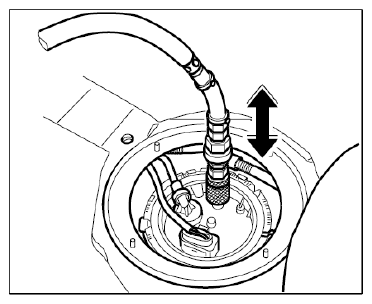

4. 1.4. Connect suction hose at the fuel level sensor.
  → Connecting piece to adapter

  Fig 4: Connecting Piece To Adapter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 1.5. Drain the fuel.
  1. 1.5.1. Set changeover lever to "Drain".
  2. 1.5.2. Switch on the transfer unit and drain the required amount of fuel.
Drain fuel, fuel level sensor removed:
1. 2.1. Remove fuel level sensor.
  → 201519 REMOVING AND INSTALLING FUEL LEVEL SENSOR - section on "Removing".
2. 2.2. Disconnect connecting piece from suction hose.

  Fig 5: Identifying Connecting Piece
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Insert suction hose into tank in order to drain fuel.
4. 2.4. Drain the fuel.
  1. 2.4.1. Set changeover lever to "Drain".
  2. 2.4.2. Switch on the transfer unit and drain the required amount of fuel.
Information
- When the work is complete, check that all aids and foreign objects (e.g. cloths, tools) are removed from the engine compartment.
Make sure there are no tools, foreign objects or aids left in the work area.
