Preliminary Work - Carrera 2

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Place protective covers on the vehicle.
Disconnect and remove the battery.
→ 270619 REMOVING AND INSTALLING BATTERY - section on "Removing".
Remove carrier plate for battery.
1. 3.1. Unscrew four hexagon collar nuts (M8) -1- and remove lid.
2. 3.2. Check seal and replace it if necessary.

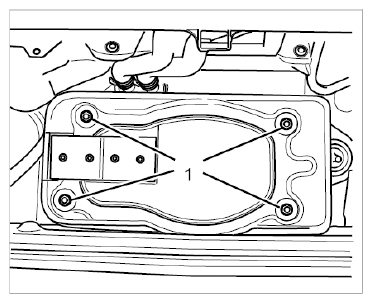

  Fig 1: Identifying Carrier Plate For Battery
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
