Filling Fuel - Carrera 2

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install fuel level sensor.
1. 1.1. Remove suction hose.
2. 1.2. Install fuel level sensor.
  → 201519 REMOVING AND INSTALLING FUEL LEVEL SENSOR - section on "Installing".
Connect fuel level sensor.
Fit all connections (fuel line, vent line and electric plugs).

The plug-in couplings must lock with an audible click.
1. 2.1. C2/RoW variant:

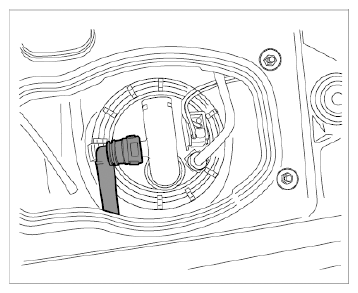

  Fig 1: Identifying Flange Of Fuel Level Sensor (Carrera 2 - RoW)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. C2/USA variant:

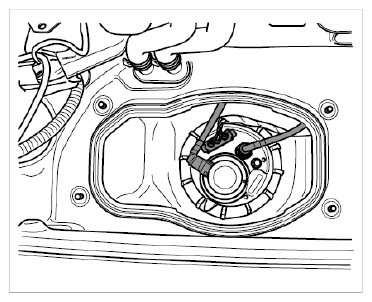

  Fig 2: Identifying Flange Of Fuel Level Sensor (Carrera 2 - USA)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill in fuel.
Connect the filling device as described in the operating instructions.
1. 3.1. Fit fuel nozzle and adjust to fuel delivery setting.
2. 3.2. Refuel the vehicle using the filler neck. The fuel nozzle will switch off automatically.
