Tools And Materials

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Overview of individual components of Fuel Identification Unit WE 1494

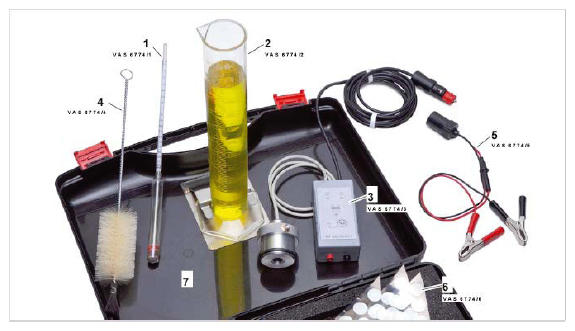

Fig 1: Identifying Fuel Identification Unit (VAS 6774)
G09827971Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. VAS 6774/1: Spindle (density gauge)
  2. VAS 6774/2: Measuring cylinder
  3. VAS 6774/3: Fuel detector (for measuring diesel)
  4. VAS 6774/4: Cleaning brush
  5. VAS 6774/5: Adapter with clamps for connecting a 12-volt battery
  6. VAS 6774/6: Filter pads for fuel detector
  7. Case
