Tools And Materials

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Tools:

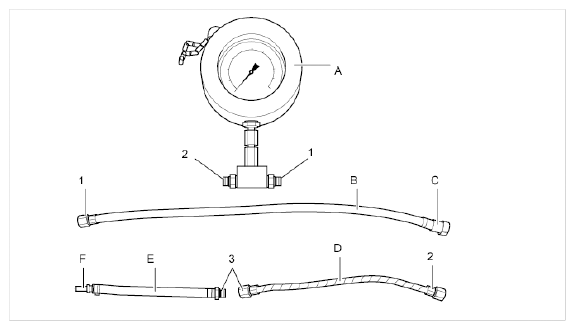

Fig 1: Identifying Pressure Gauge Tool

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure gauge from K-Jetronic Tester VAG. 1318 WE 1291
Connection line no. 17 (long) from VAG 1318
Plug-in coupling for fuel line from the fuel tank
Connection line P 378 C
Connection line no. 17 (short) from VAG 1318
Plug-in coupling for fuel line to the engine

Joining socket on pressure gauge for connection line B (item 1)
Joining socket on pressure gauge for connection line D (item 2)
Screw socket for screwing on connection lines D and E

Alternative tool (can only be used when the engine is stopped):

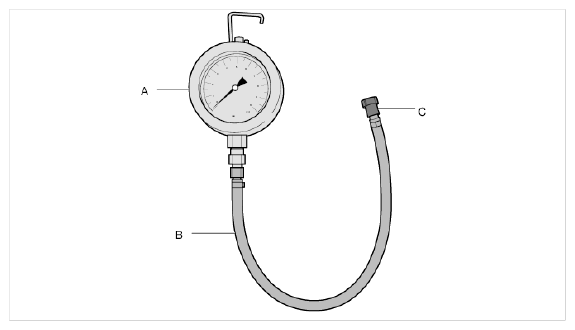

Fig 2: Identifying Pressure Gauge And Connection Line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure gauge 378a
Connection line no. 17 from VAG 1318
Plug-in coupling for fuel line from the fuel tank
