Performing First Start Routine

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The process in the PIWIS Tester always works only once for each vehicle selection.
To repeat the process, the ignition and PIWIS Tester must be switched off.

The bleeding process is performed via the First start function using the PIWIS Tester 9718.

PIWIS Tester 9718 must be connected to the vehicle. Switch on ignition and Tester.
Start the diagnostic program, select the vehicle and highlight the DME option during control unit selection. Press [F12>>] to start the control unit search.

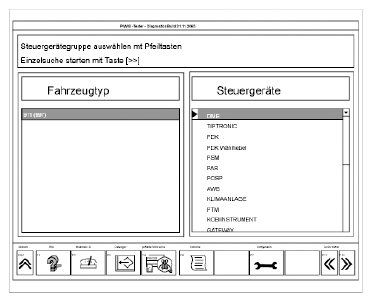

Fig 1: Control Unit Search Screen Display
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Find and select the Special functions menu item. Press [F12>>] to continue.

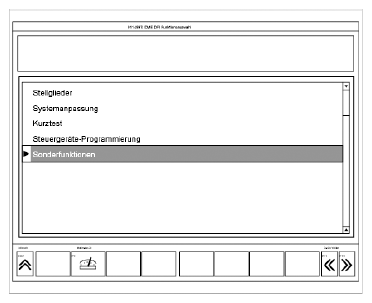

Fig 2: Special Functions Menu Item Screen Display
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Select First start in the menu and press [F12>>] to continue.

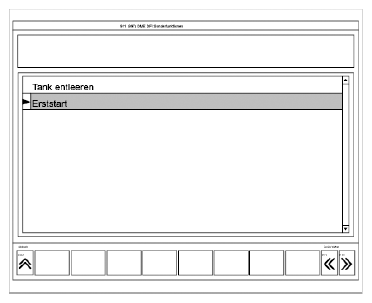

Fig 3: First Start Menu Item Screen Display
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. The following message is displayed. Press [F12>>] to continue.

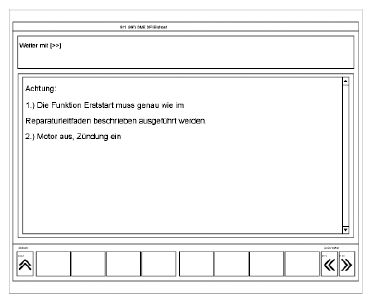

  Fig 4: Display - Message Screen
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The next menu item shows what to do next. The sequence must be adhered to because otherwise, the function cannot be guaranteed.
1. 5.1. Activate the function routine by pressing [F8=Start]. Check how long it takes to run the function.

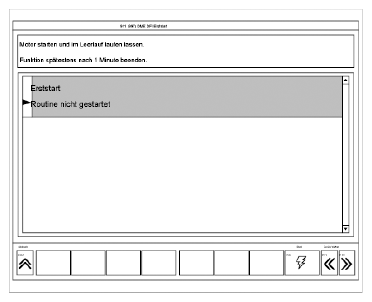

  Fig 5: Starting Routine Screen Display
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Then start the engine.
3. 5.3. The function ends automatically after one minute.

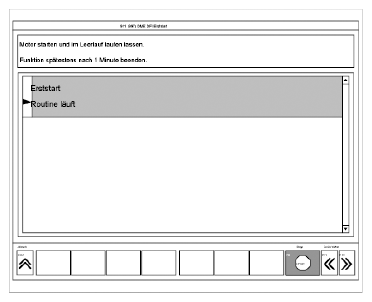

  Fig 6: Routine Running Screen Display
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Switch off the engine and the Tester.
Pull off the Tester cable at the connection point.
