Removing impact absorber

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

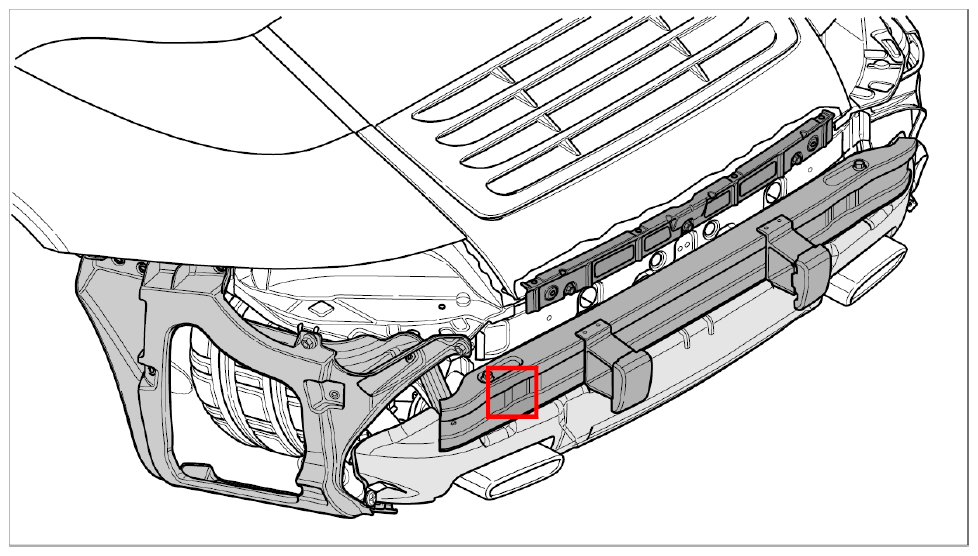

Fig 1: Overview Of Rear Impact Absorber
G09824808Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Undo fastening screws -1-  .
  2. Remove the impact absorber (Canada version) -2-  with seal -3-  .

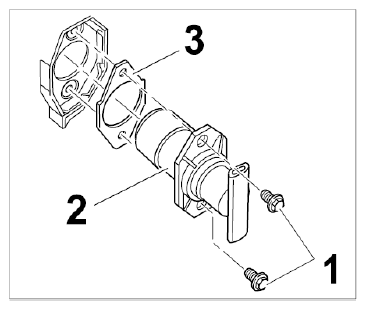

    Fig 2: Removing Impact Absorber
    G09824809Courtesy of PORSCHE CARS NORTH AMERICA, INC.
