Installing impact absorber

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

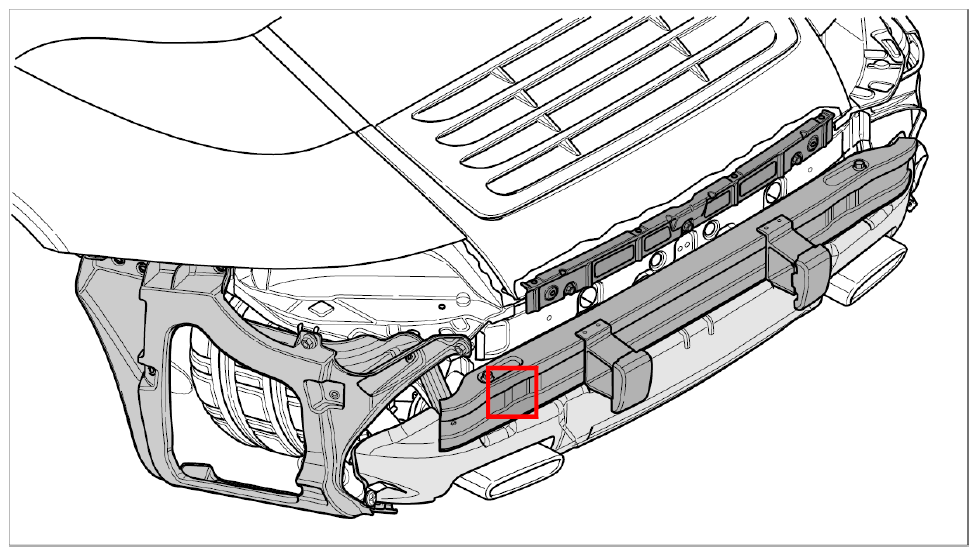

Fig 1: Overview Of Rear Impact Absorber
G09824812Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position the impact absorber (Canada version) -2-  with seal -3-  .

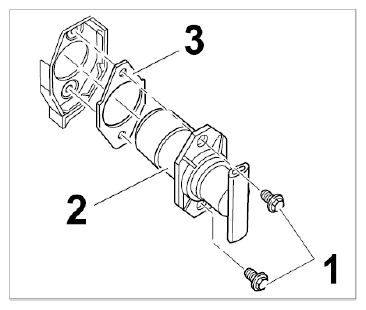

    Fig 2: Installing Impact Absorber
    G09824813Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in M8 x 30 fastening screws -1-  and tighten at tightening torque with → Fasten final tightening: 23 Nm (ftlb.) (17)  .
