Removing rear bumper horn

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

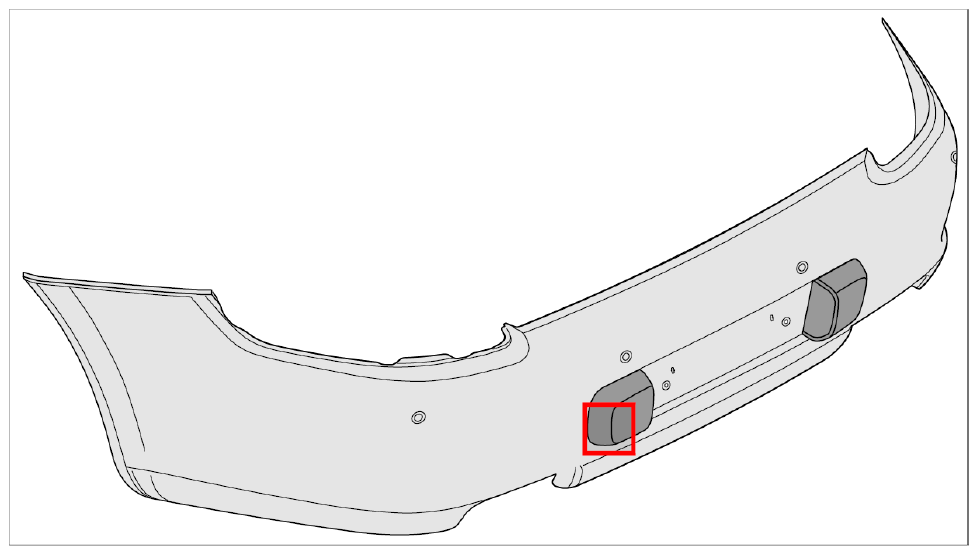

Fig 1: Removing Rear Bumper Horn

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Push retaining pins from the inside and unclip expanding clips.

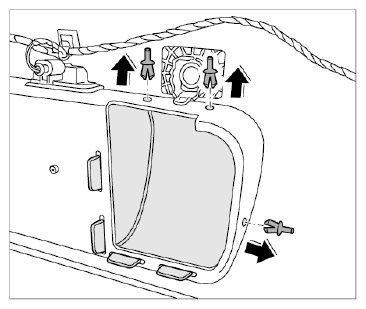

Fig 2: Removing Expanding Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert a spatula laterally between the rear apron -1- and bumper horn -2- -arrow A- . Press in the locking tab -arrow B- and remove the bumper horn -2- .

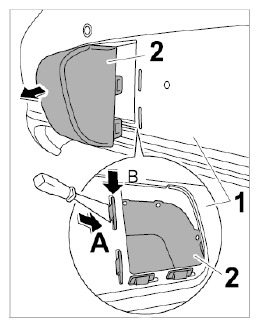

Fig 3: Removing Bumper Horn
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
