Installing the rear bumper horn

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

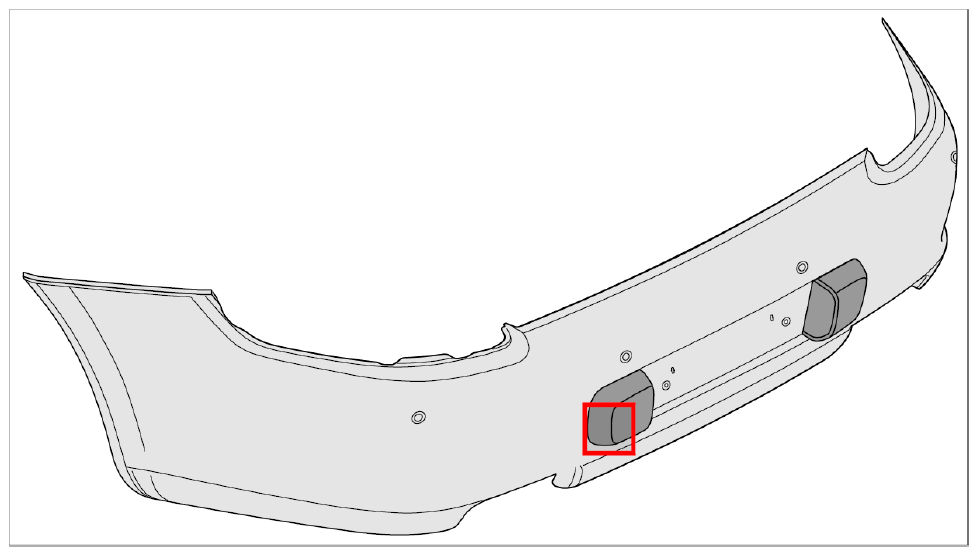

Fig 1: Identifying Rear Bumper Horn

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position the bumper horn -2- on the rear apron -1- and press in until the locking tabs engage.

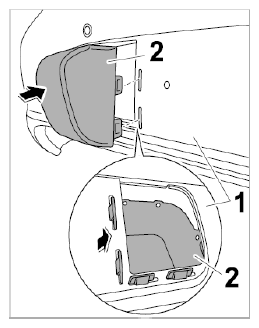

Fig 2: Installing Rear Bumper Horn
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten the bumper horn with the expanding clips by pressing in the retaining pins.

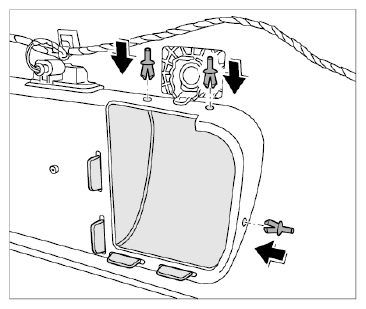

Fig 3: Fastening Bumper Horn
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
