Removing rear apron

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

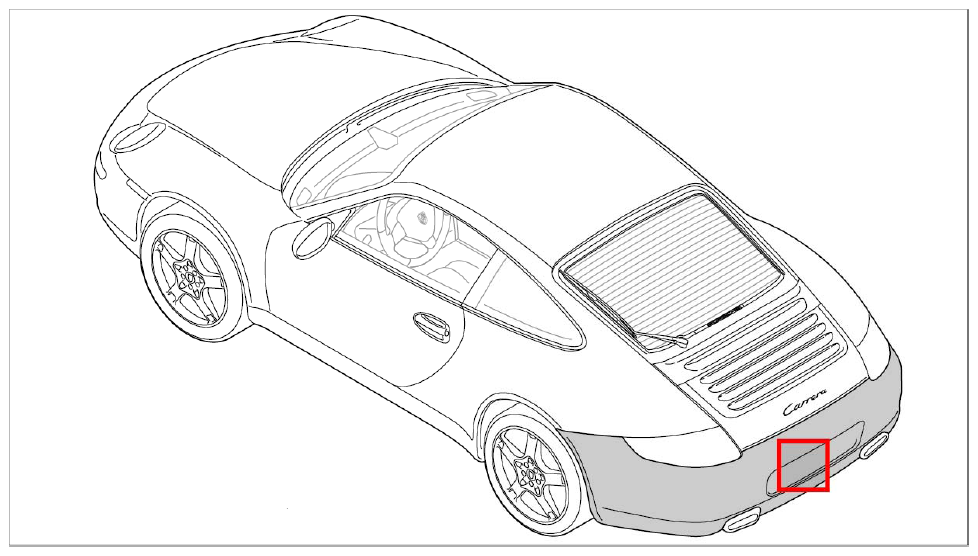

Fig 1: Identifying Installation Position Of Rear Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

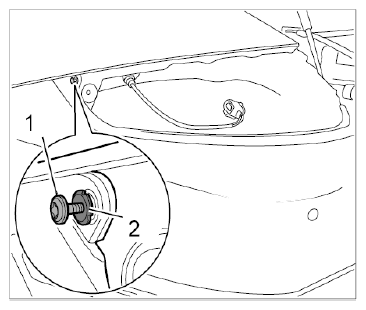

Unscrew expanding pin -1- and unclip the expanding clip -2- .

Fig 2: Identifying Expanding Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

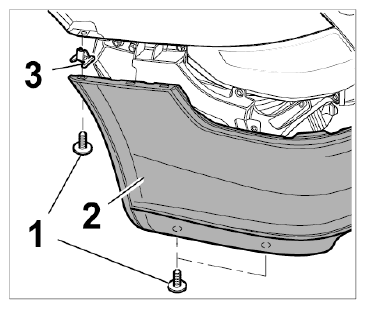

Unscrew fastening screws -1- at the sides of the rear apron -2- .

Fig 3: Identifying Rear Apron At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check speed nuts -3- and replace them if necessary.

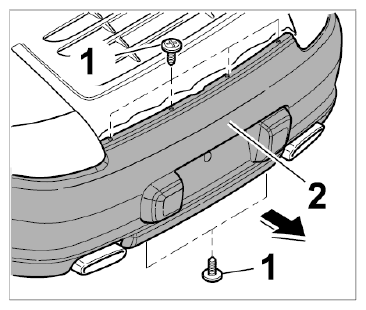

Unscrew fastening screws -1- at the top and bottom of the rear apron -2- .

Fig 4: Detaching Rear Apron At Top And Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Two people are needed to remove and install the rear apron!
Pull rear apron -2- carefully to the rear until the plug connection can be reached.

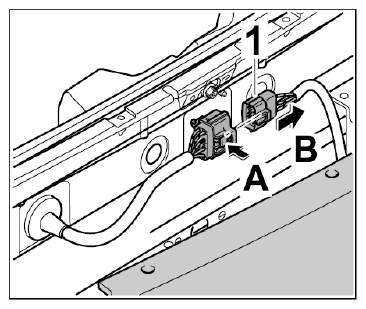

Press locking lug on plug connection -1- (-arrow A- ) and disconnect it -arrow B- .

Fig 5: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the rear apron.Removing rear apron
