Checking anti-chafing film

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Make sure that the anti-chafing film completely seals off the cutout of the sheetmetal nut.

Check anti-chafing film -1- and replace it if necessary.

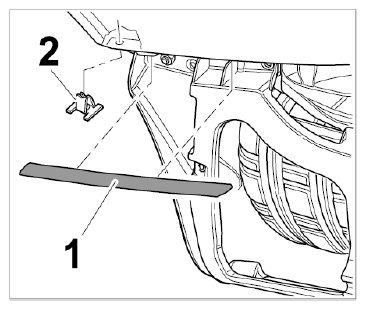

Fig 1: Checking Anti-Chafing Film
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check sheetmetal nut -2- and replace it if necessary.
