Removing Torque Converter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

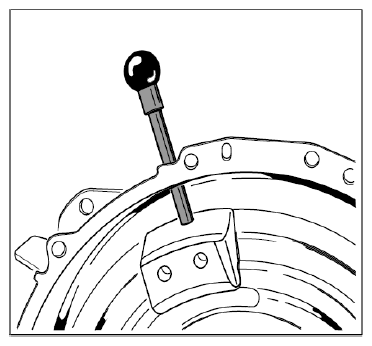

Locating pin 95951 (long) must be removed from transmission housing.

Fig 1: Fixing Torque Converter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When pulling out, the torque converter must be kept horizontal, otherwise ATF can emerge.

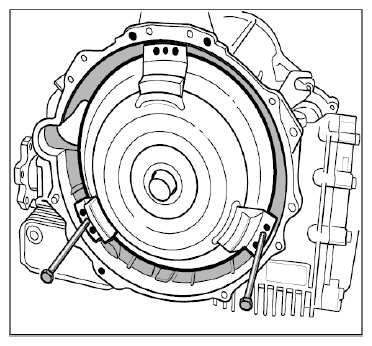

Screw two screws (M8) into torque converter and remove torque converter using the screws from transmission input shaft.

Fig 2: Pulling Out Torque Converter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
