Installing Torque-Converter Sealing Ring

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Thinly coat sealing lip of new sealing ring with Vaseline.
  2. Drive in sealing ring with pressure piece 96700  as far as the mounting face.

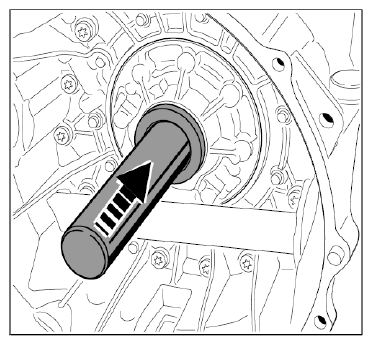

    Fig 1: Fitting Sealing Ring
    G09823638Courtesy of PORSCHE CARS NORTH AMERICA, INC.
