Removing Converter Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew connecting screws between converter housing and engine -1 to 8-  and remove converter housing.

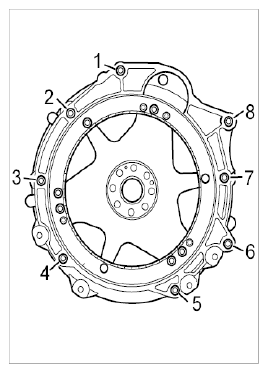

    Fig 1: Converter Housing Screws Removing Sequence
    G09823622Courtesy of PORSCHE CARS NORTH AMERICA, INC.
