Removing Cover For Camshaft Housing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Ingress of dirt
- Danger of material damage due to blocked oil bores/oil ducts.
→ Absolute cleanliness is essential when working on the engine.
→ Lay removed engine parts on a clean base and make sure to cover them.
→ Use the cover for dust protection when fitting the engine NR.165 on the engine assembly support.
CAUTION:

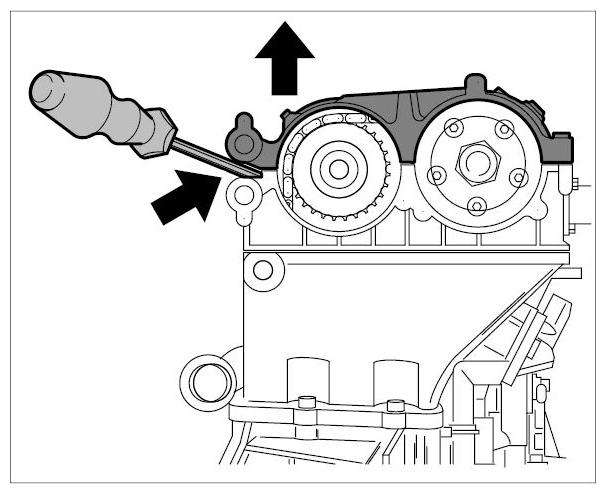

Lever off camshaft housing cover.
- Cast lugs can break off.
→ Carefully lift off the cover.
- Remove small lids (green) between camshaft-housing cover and cylinder head.
- 1.1. To do so, puncture the lids in the middle and lever out using a small slotted screwdriver.
- Remove oil suction pump or tandem pump.
- 2.1. Tandem pump, side 1-3: unscrew three Torx screws (M6 x 35), remove cable holder on exhaust temperature sensor and take off pump.
- 2.2. Suction pump, side 4-6: unscrew three Torx screws (M6 x 35) and take off pump.
- Loosen camshaft actuator lid. Remove three Torx screws (M6 x 20) and one cable holder for oxygen sensors.

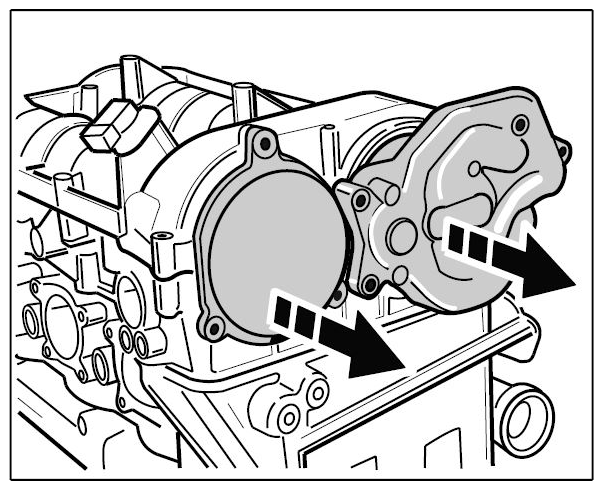

- Pull off oil suction pump/tandem pump and lids.
- Remove camshaft-housing cover.

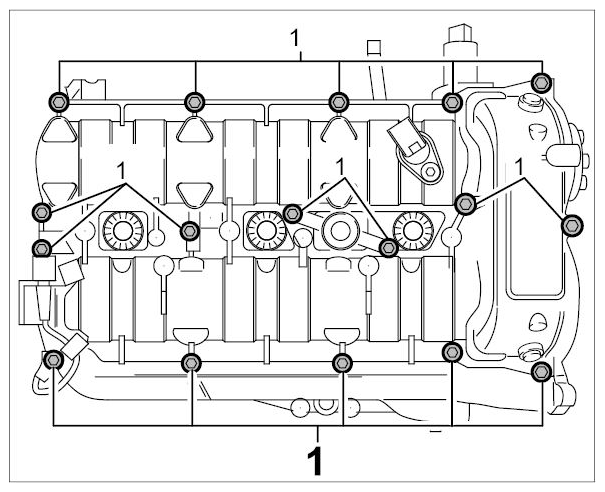

- 5.1. Unscrew 17 Torx screws (M6) -1- from the outside to the inside.
- 5.2. Cylinder bank 1-3: 14 M6 x 35 screws, two M6 x 25 screws (solenoid hydraulic valve holder) and one M6 x 75 screw.
- 5.3. Cylinder bank 4-6: two M6 x 40 screws (oil tank support), 12 M6 x 35 screws, two M6 x 25 screws (solenoid hydraulic valve holder) and one M6 x 75 screw.
- Remove solenoid hydraulic valve for valve lift adjustment with holder.

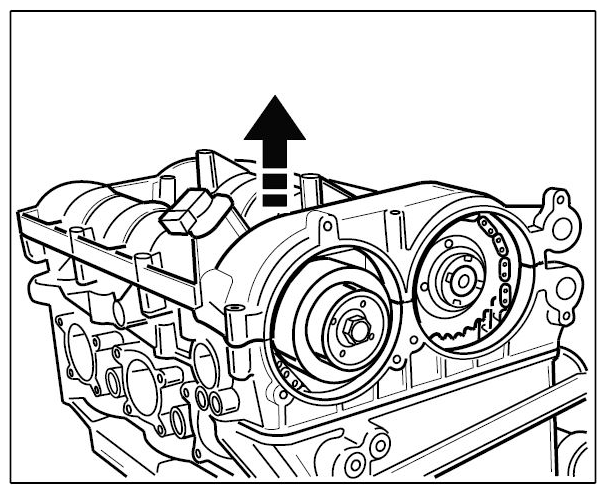

- Lift off camshaft-housing cover.
- 7.1. Carefully lift up the cover using a large screwdriver if necessary.
- Carefully clean all sealing faces.
