Installing Cover For Camshaft Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Ingress of dirt

Danger of material damage due to blocked oil bores/oil ducts.

→ Absolute cleanliness is essential when working on the engine.

→ Lay removed engine parts on a clean base and make sure to cover them.

→ Use the cover for dust protection when fitting the engine NR.165 on the engine assembly support.

Information

Only use Drei Bond, type 2210 sealant.

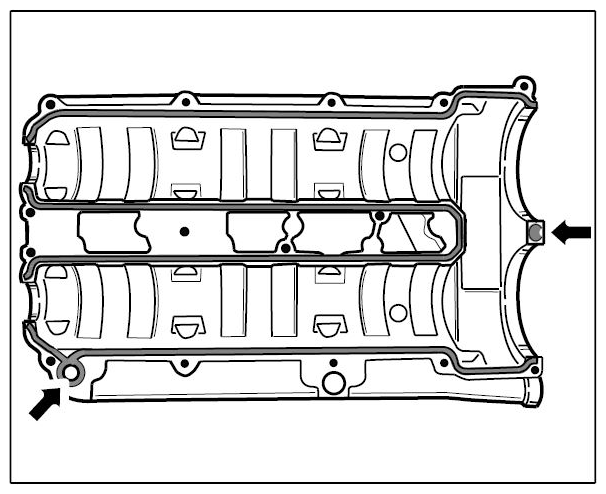

Carefully apply a uniform bead of sealant approximately 1 mm wide to the camshaft housing cover.

Fig 1: Applying Sealant To Camshaft Housing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit camshaft housing cover.
1. 2.1. Fit cover and secure with four M6 x 35 screws (tighten screws slightly).
  Information

  For all lubrication points, use Kluber Syntheso Glep (Part No. 000.043.204.68).
2. 2.2. Insert solenoid hydraulic valve with a new O-ring on the cylinder head and fit holder using two Torx screws (M6 x 25).
3. 2.3. Fit the remaining Torx screws evenly.
  1. 2.3.1. Cylinder bank 1-3: ten M6 x 35 screws and one M6 x 75 screw.
  2. 2.3.2. Cylinder bank 4-6: two M6 x 40 screws (oil tank holder), eight M6 x 35 screws and one M6 x 75 screw.

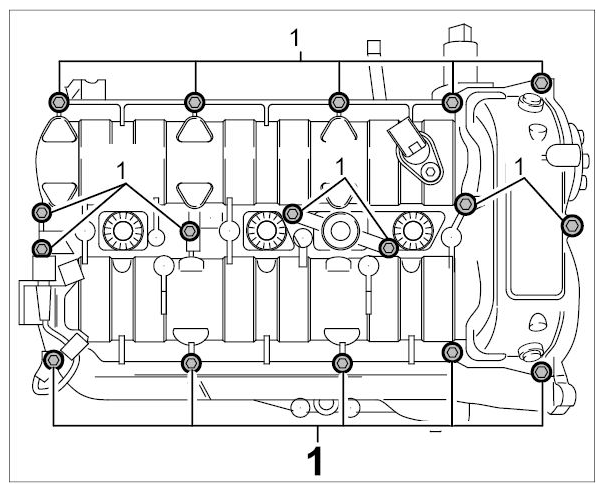

4. 2.4. Tighten all screws -1- in diagonally opposite sequence from the inside out. → Tightening torque: 10 Nm

  Fig 2: Identifying Camshaft Housing Cover Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install camshaft actuator lid with a new O-ring. Fit three Torx screws (M6 x 20) and one cable holder for oxygen sensors. → Tightening torque: 10 Nm (7.5 ft. lb.)
Install oil suction pump or tandem pump with new O-rings. Coat O-rings with Kluber grease.
1. 4.1. Tandem pump, side 1-3: fit pump with three Torx screws (M6 x 35) and cable holder for exhaust temperature sensor and tighten screws. → Tightening torque: 10 Nm (7.5 ft. lb)
2. 4.2. Oil suction pump, cylinder bank 4-6: fit pump with three Torx screws (M6 x 35) and tighten screws. → Tightening torque: 10 Nm (7.5 ft. lb.)
Fit two new lids (do not grease).
1. 5.1. Carefully tap covers onto the camshaft housing using a plastic hammer.
