Subsequent Work - Cylinder Bank 1-3

Information

• Only unscrew and screw in the specified screws for removing and installing the vacuum pump.
• The vacuum pump must not be disassembled.

1. Connect cable plug -1-  for pulse sender, secure it in the cable holder -2-  and clip it in -position-  .

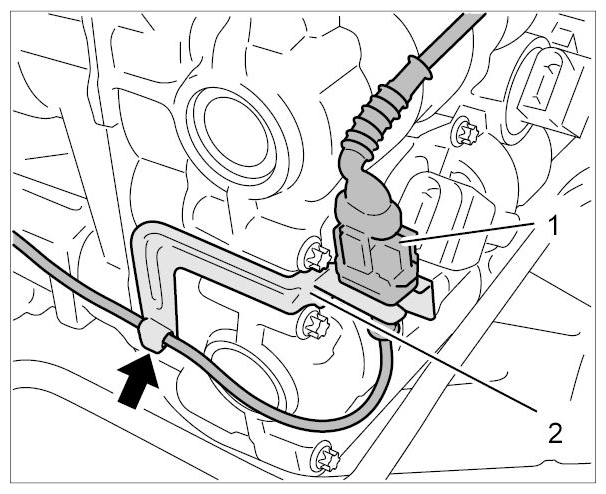

   Fig 1: Identifying Cable Plug And Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fit camshaft-housing cover at the top -1-  .
   1. 2.1. Secure the cover with three external Torx screws (E10, M6 x 20).

      → Tightening torque: 10 Nm (7.5 ft. lb.)

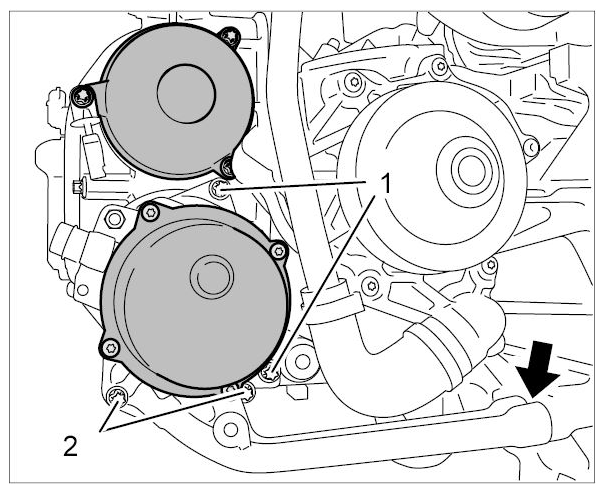

      Fig 2: Locating Camshaft-Housing Cover And Vacuum Pump

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fit vacuum pump.
   1. 3.1. Fit two external Torx screws (E10, M6 x 25).
   2. 3.2. Connect oil return pipe -arrow-  .
   3. 3.3. Fit two external Torx screws (E10, M6 x 30) and tighten all four screws.

      → Tightening torque: 13 Nm (9.5 ft. lb.)

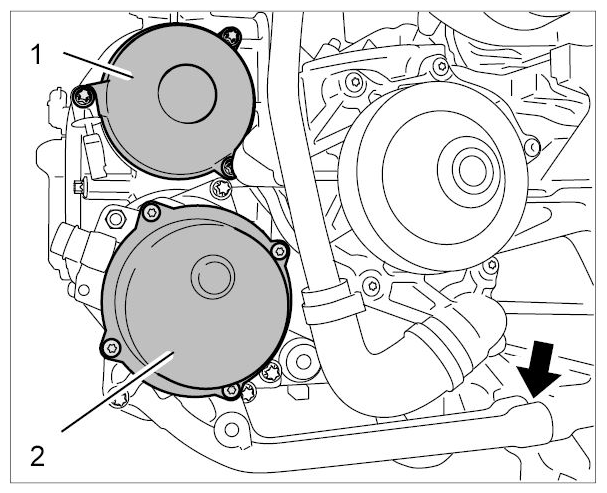

      Fig 3: Locating Screws For Vacuum Pump On Cylinder Bank 4-6

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit vacuum line for vacuum pump.
   1. 4.1. Connect vacuum line and vacuum hose -1-  to the pump.
   2. 4.2. Screw in and tighten two external Torx screws (M6 x 16 -2-  at the top and M6 x 10 -3-  at the bottom).

      → Tightening torque: 10 Nm (7.5 ft. lb.)

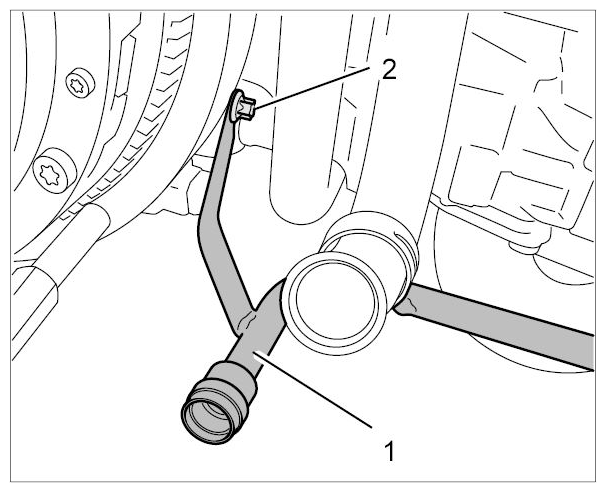

      Fig 4: Identifying Vacuum Line And Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 4.3. Secure vacuum line -1-  to the engine/transmission flange with an external Torx screw (E10, M6 x 12) -2-  .

      → Tightening torque: 10 Nm (7.5 ft. lb.)

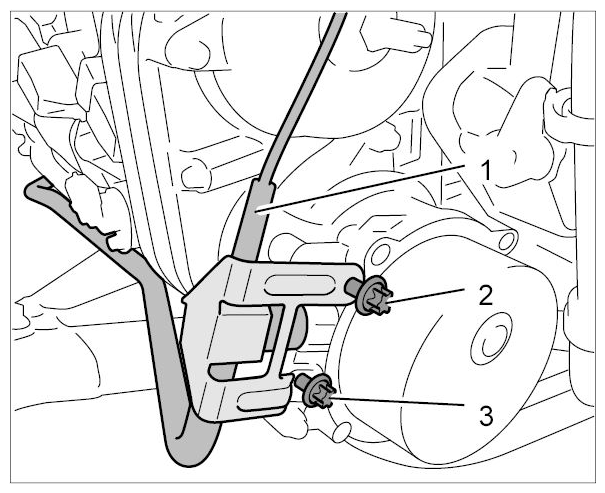

      Fig 5: Identifying Vacuum Line To Engine/Transmission Flange

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
5. Fit cover with thermostat on the coolant regulator housing.

   Tool recommendation: 3/8-inch socket-wrench insert (long), hexagon socket a/f 5 with ball joint

   1. 5.1. Coat hose connections with Kluberplus Gel.
   2. 5.2. Fit cover -1-  with new O-rings and thermostat on the housing.

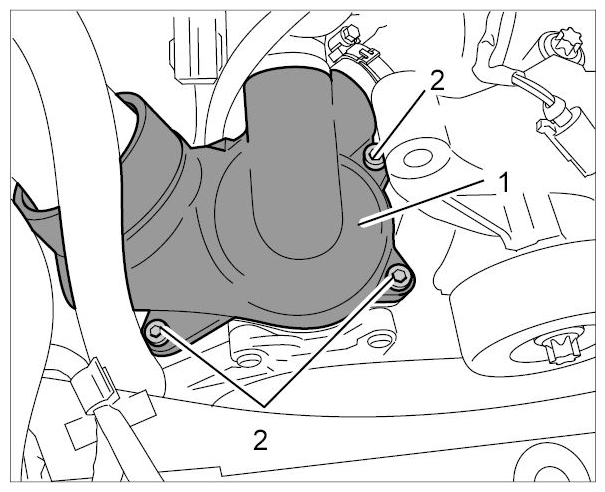

      Fig 6: Identifying Coolant Regulator Housing Cover And Screw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 5.3. Fit coolant hoses.
   4. 5.4. Fit and tighten three cheese head bolts (hexagon socket a/f 5, M6 x 35) -2-  .

      → Tightening torque: 10 Nm (7.5 ft. lb.)

   5. 5.5. Tighten screw-type clamps -2-  on the coolant hoses -1-  .

      → Tightening torque: 3 Nm (2 ft. lb.)

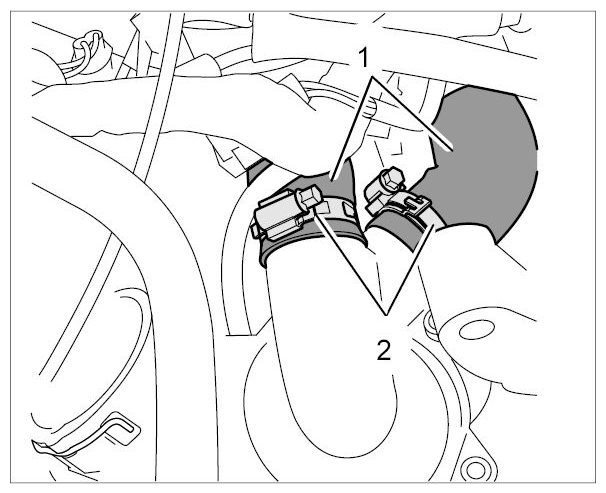

      Fig 7: Identifying Coolant Hose Connections To Coolant Regulator Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Install bar ignition modules and fit cable plugs.
   1. 6.1. Fit bar ignition modules and secure with internal Torx screws (T30, M6 x 16) -3-  .

      → Tightening torque: 10 Nm (7.5 ft. lb.)

   2. 6.2. Plug in cable plugs for bar ignition modules -2-  and hall sender -1-  and secure ground cable with an external Torx screw (E10, M6 x 12).

      → Tightening torque: 10 Nm (7.5 ft. lb.)

   3. 6.3. Secure vacuum line with an external Torx screw (E10, M6 x 12) -4-  .

      → Tightening torque: 10 Nm (7.5 ft. lb.)

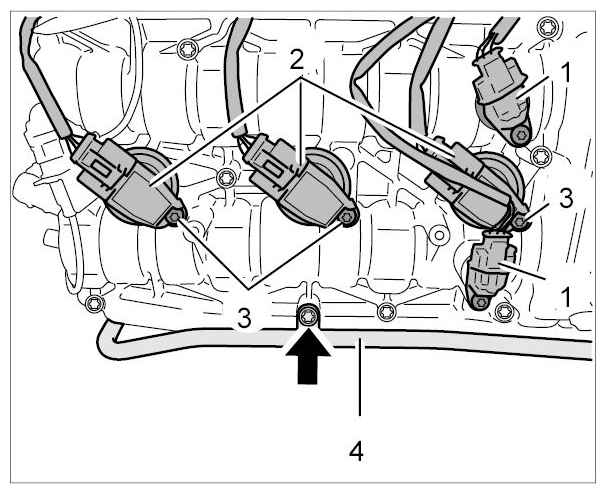

      Fig 8: Locating Cable Plugs And Ignition Coils On Camshaft-Housing Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Complete Steps 7 to 15 as for cylinder bank 4-6.
