Removing Camshaft-Housing Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Ingress of dirt

Danger of material damage due to blocked oil bores/oil ducts.

→ Absolute cleanliness is essential when working on the engine.

→ Lay removed engine parts on a clean base and make sure to cover them.

→ Use the cover for dust protection when fitting the engine NR.165 on the engine assembly support.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Remove small plastic covers (green) on the camshaft housing.
1. 1.1. To do this, puncture the covers in the middle and lever out using a slotted screwdriver.
Pull off the first two flat connectors -1- for the rod ignition modules (viewed from belt side).

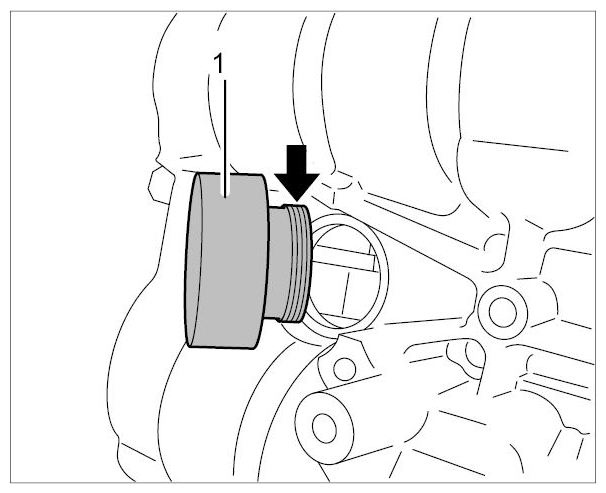

Fig 1: Locating Flat Connector For Rod Ignition Module On Camshaft-Housing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove camshaft-housing cover.
1. 3.1. Unscrew 17 external Torx screws (E10, M6) from the outside in.
2. 3.2. Side 1-3: 14 M6 x 35 screws -1- , two M6 x 20 screws -2- and one M6 x 75 screw -3- .
  Remove cable holder for pulse sender.
3. 3.3. Side 4-6: 14 M6 x 35 screws -1- , two M6 x 20 screws -2- and one M6 x 75 screw -3- .
  Remove two oil tank holders.

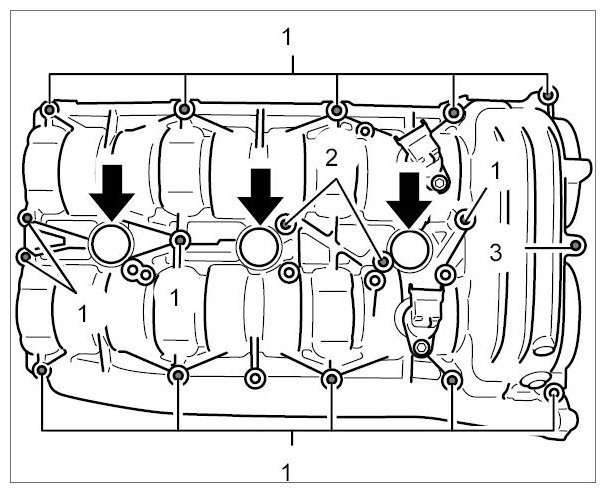

  Fig 2: Locating Screws On Camshaft-Housing Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
CAUTION:
Lever off camshaft housing cover.
- Cast lugs can break off.
→ Carefully lift off the cover.
Lift off camshaft-housing cover.
1. 4.1. Carefully pry off at the cast lugs using a large screwdriver if necessary.
Carefully remove residual sealing compound. Use a rotating rubber washer, for example, to do this.
