Preliminary Work - Cylinder Bank 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Ingress of dirt

Danger of material damage due to blocked oil bores/oil ducts.

→ Absolute cleanliness is essential when working on the engine.

→ Lay removed engine parts on a clean base and make sure to cover them.

→ Use the cover for dust protection when fitting the engine NR.165 on the engine assembly support.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Complete Steps 1 to 9 as for cylinder bank 1-3.
Remove oil return line -1- .
1. 2.1. Loosen the clamp -2- and screw off hexagon nut (a/f 36) -arrow- on the connection for the oil suction pump by countering at the hexagon connection piece (a/f 32).
2. 2.2. Pull off cable plug on the oil-level sender.
3. 2.3. Disconnect line at the oil tank.

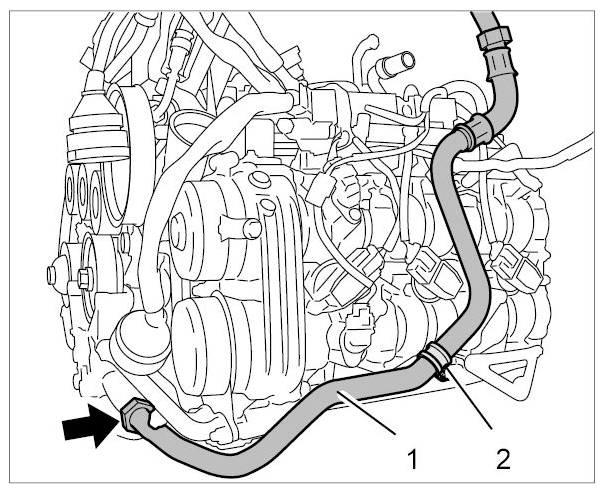

  Fig 1: Identifying Oil Return Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove oil tank.
→ 175219 REMOVING AND INSTALLING OIL TANK .
Disconnect cable plugs for bar ignition modules and hall sender and remove bar ignition modules -1- .
1. 4.1. Pull off cable plugs for hall sender and bar ignition modules -2- .
2. 4.2. Unscrew internal Torx screws (T30, M6 x 16) -3- on the bar ignition modules.
3. 4.3. Pull off bar ignition modules.
4. 4.4. Unscrew external Torx screw (E10, M6 x 12) on the ground cable.

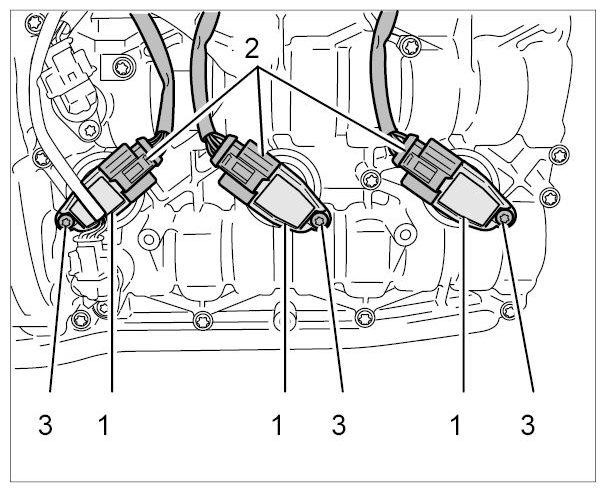

  Fig 2: Identifying Bar Ignition Module Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove covers -1 and 3- on the camshaft housing.
1. 5.1. Unscrew three external Torx screws (E10, M6 x 20) -2- on the top cover and remove cover.
2. 5.2. Unscrew three external Torx screws (E10) - one M6 x 20 -2- and two M6 x 30 -4- - on the bottom cover (oil return connection).

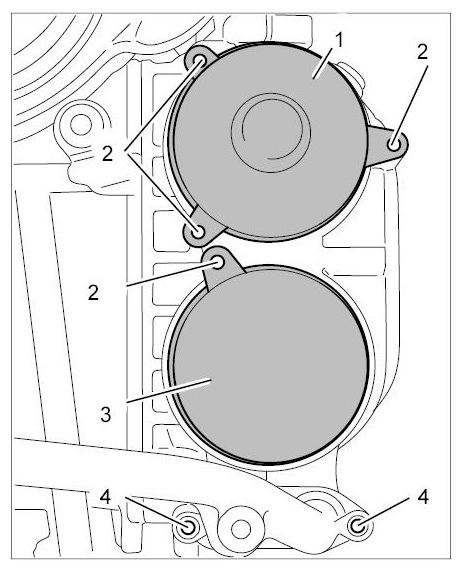

  Fig 3: Identifying Camshaft-Housing Covers
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off oil pipe -1- for the oil suction pump.
1. 6.1. Pull off bottom cover.
2. 6.2. Replace O-rings -arrows- .

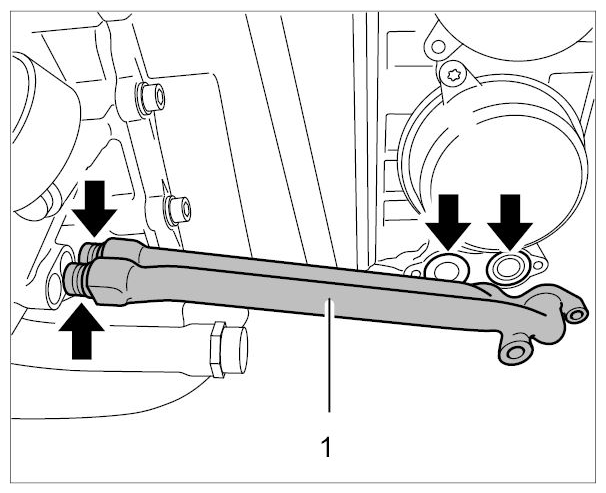

  Fig 4: Identifying Oil Suction Pipe
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Replace O-rings on both covers.
