Installing Cylinder Head Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components

→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Fit seal -1- into the cylinder head cover.

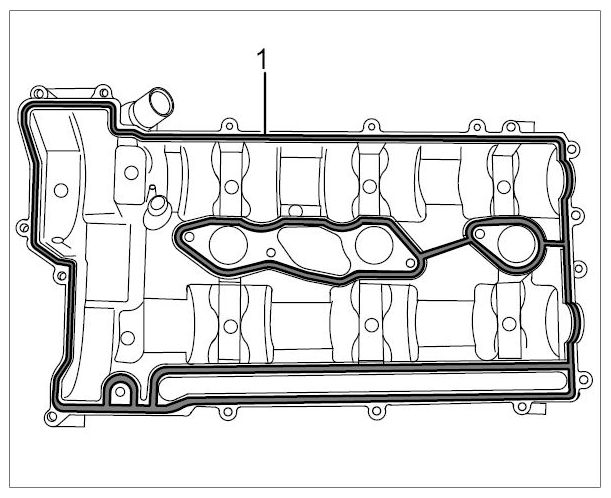

Fig 1: Identifying Seal On Cylinder Head Cover 1-3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

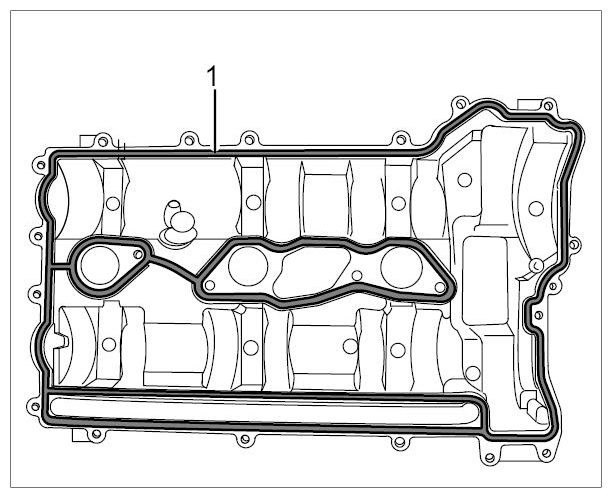

Fig 2: Identifying Seal On Cylinder Head Cover 4-6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit cover on cylinder head using 20 internal Torx (T30) countersunk screws (M6 x 25).
Fit and tighten screws according to the specified tightening sequence -1 to 20- .

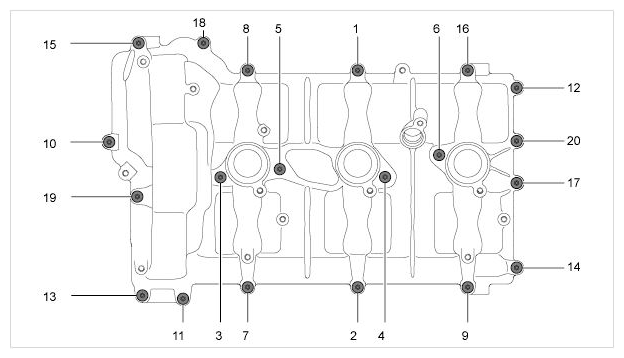

Fig 3: Tightening Sequence For Cylinder Head Cover 1-3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

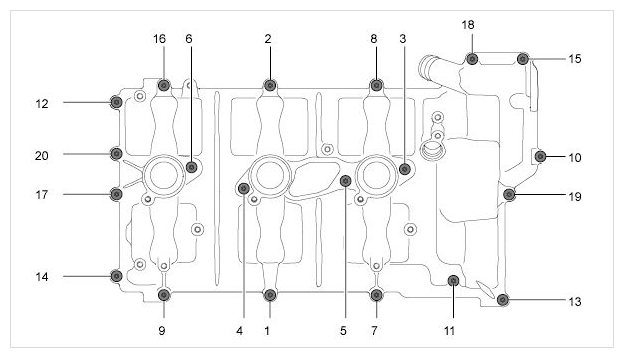

Fig 4: Tightening Sequence For Cylinder Head Cover 4-6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Tightening torque: 13 Nm (9.5 ft. lb.)
