Removing Valve-Stem Seal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull off the valve-stem seal using the Puller 3364  .

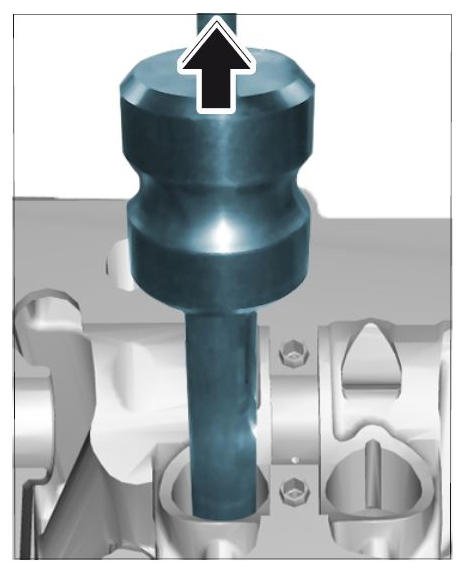

    Fig 1: Pulling Off Valve-Stem Seal
    G09821851Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check valve springs, valves, valve guides and valve seats for damage.
  3. Thoroughly clean the cylinder head and all parts before assembly.
