Disassembling Cylinder Head: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Ingress of dirt

Danger of material damage due to blocked oil bores/oil ducts.

→ Absolute cleanliness is essential when working on the engine.

→ Lay removed engine parts on a clean base and make sure to cover them.

→ Use the cover for dust protection when fitting the engine NR.165 on the engine assembly support.

Recommended tools: Valve key fitting and removal tool Nr.54 Pos.1

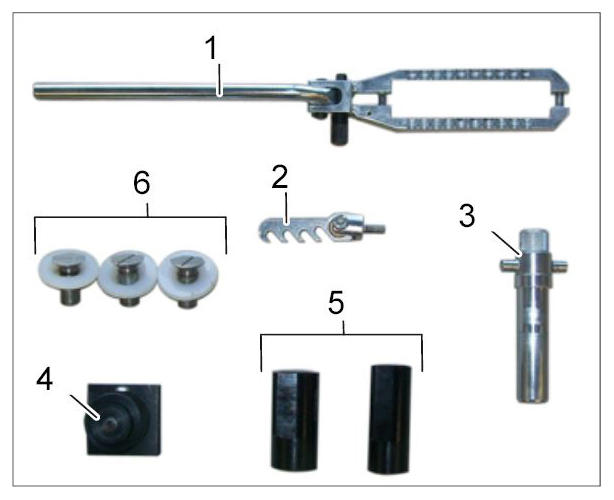

Fig 1: Identifying Valve Key Fitting And Removal Tool Nr.54 Pos.1

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure fork with lever
Engaging lock
Assembly cartridge
Valve key insertion device
Assembly Tool Set Nr.54 Pos.1C
Valve locating screws (from Sauer tool set No. 54-1)
