Installing Valve-Stem Seals

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace valve-stem seal.

Insert lower valve-spring plate.
1. 1.1. Oil the valve stem lightly and position assembly sleeve (shim set for valve-stem seals).
2. 1.2. Slide new valve-stem seal over the sleeve by hand.

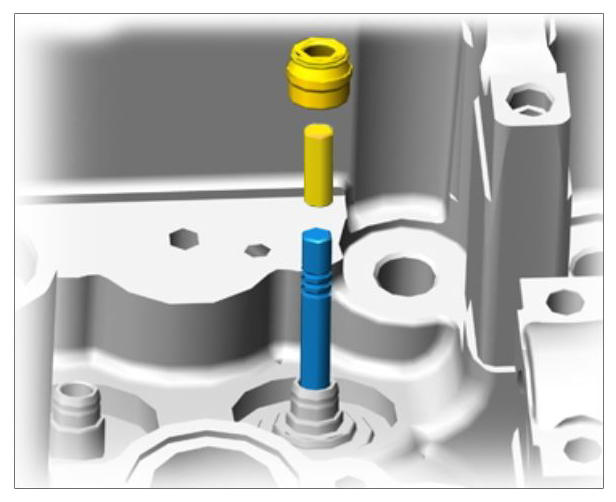

  Fig 1: Identifying Valve-Stem Seal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use Assembly Driver 9606/1 to press the valve-stem seal as far as it will go onto the valve stem -arrow- .
1. 2.1. Remove tool and assembly sleeve.

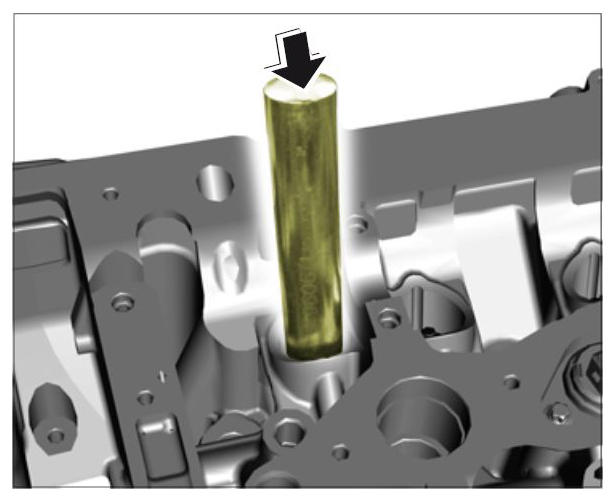

  Fig 2: Pressing In Valve-Stem Seal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
